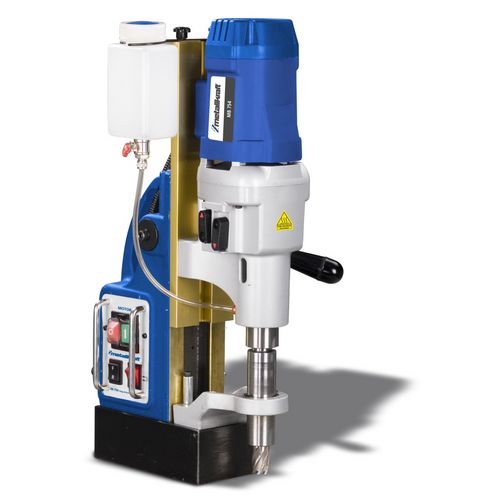

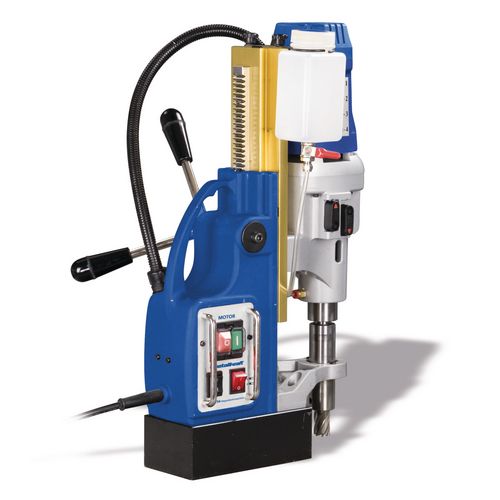

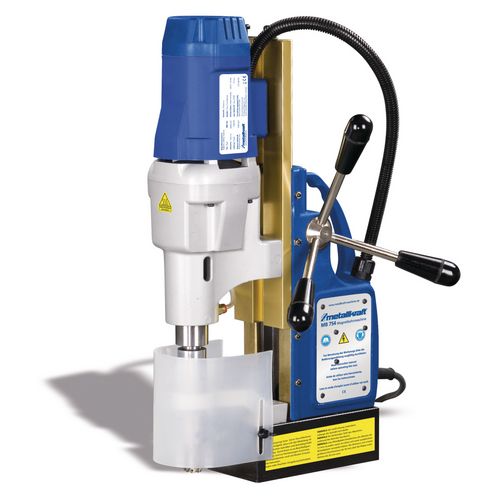

    Magnetic core drill

    MB 754

    High-quality machine for versatile use. Drill large diameters economically and quickly

    1.549,00 EUR excl. Tax / pc(s).
    1.843,31 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.249,00 EUR excl. Tax / pc(s).
    1.486,31 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 3860754

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For core drills with 19 mm Weldon shank
    • Stable drill guide due to the long and especially deep mounted quill holder
    • Device is earthed and double insulated, making it ideal for the job site
    • High magnetic holding force
    • High quality construction
    • The coolant is passed through the drill
    • Conversion from core drilling to full drilling in just a few steps
    • Safe and reliable function



    • Four speeds
    • 2,000 watts motor
    • Max. Magnet holding force of 32,000 N
    • Spindle mount MK 3
    • Forward / reverse operation



    Collet
    SpindleMK 3
    DrillWeldon 3/4"
    Core drills
    Core drills Ø max. with manual feed75 mm
    Max. drilling depth core drilling with manual feed50 mm
    Dimensions and weights
    Length approx.320 mm
    Width/depth approx.280 mm
    Height approx.515 mm
    Weight approx.24.4 kg
    Electrical Data
    Drive motor output2 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Full drills
    Drill Ø max. full drilling directly mounted32 mm
    Drilling depth max. full drilling directly mounted150 mm
    Drill Ø max. full drilling mounted with adapter & chuck16 mm
    Drilling depth max. full drilling mounted with adapter & chuckBohrtiefe max.110 mm
    Magnet
    Holding force32000 N
    Magnet base length200 mm
    Magnet base width100 mm
    Speed range
    Speed(s) under load90 / 120 / 180 / 230 min¯¹
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1 coolant tank and coolant line
    • 1 protection device
    • operating tool
    • Plastic carrying case
    • 1 chain
    • drill drift
    • Core drill holder MK 3 / 19mm
