CNC-controlled, hydraulic press brake

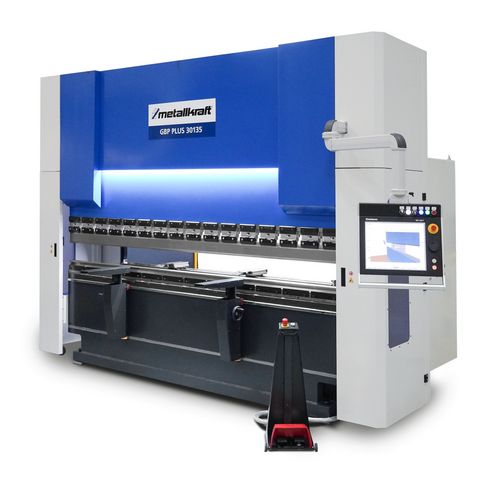

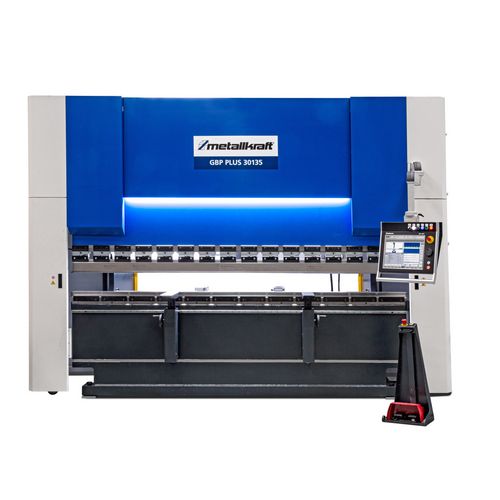

GBP PLUS 30220
With 4 driven axes, motorized crowning and manual upper tool quick clamping
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4273022
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard version:

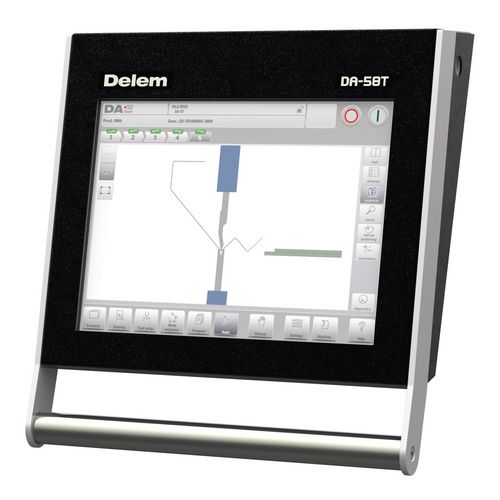

- Graphical 2D CNC control DELEM DA-58T with offline software TL
- Two linear encoders (GIVI) on Press bar for checking the desired position
- High-quality linear encoders with an accuracy of 0.01 mm
- CNC-controlled backgauge with two backgauge fingers

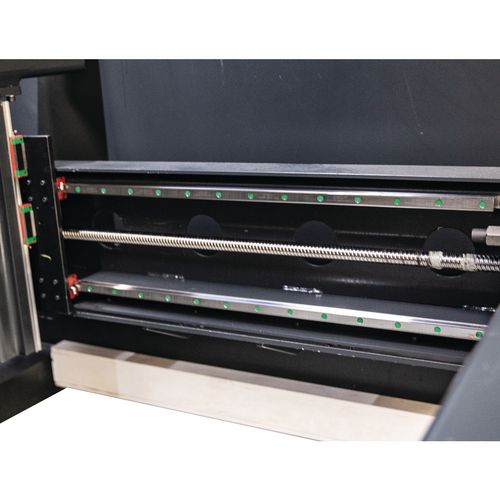

- X-axis linearly guided and driven by ball screws via servomotor
- R-axis guided linearly and driven by ball screws via servomotor
- Backgauge fingers on linear guides manually adjustable laterally

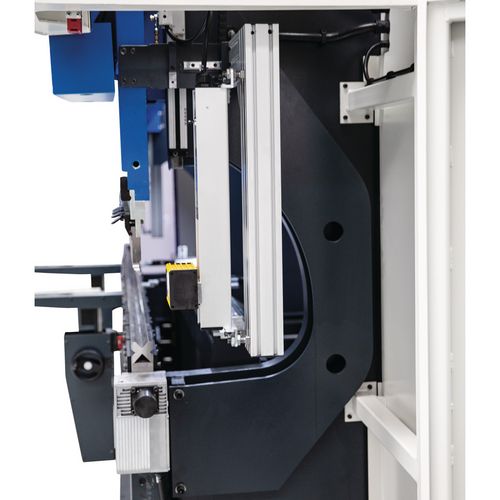

- Safety laser Fiessler AKAS LC -II M with press safety control FMSC
- CNC-controlled, motorized crowning device WILA to compensate for the spring deflection
- Control panel on the right side of the machine on a swiveling arm
- Solid and low-maintenance flat guide of the press beam

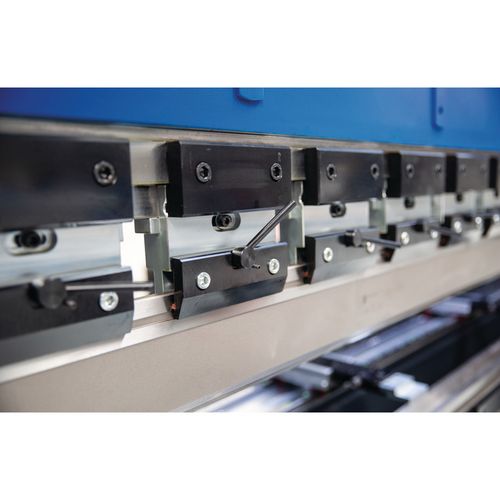

- Manual top tool clamping (lateral removal), Promecam system / Amada
- Top tool (Promecam/Amada), height 105 mm (3 x 835 mm / 1 x 805 mm sectioned)
- Multi-V die, height 60 mm, V-openings 16/22/35/50 mm (3 x 835 mm / 1 x 805 mm sectioned)
- Mobile foot control unit (BERNSTEIN) with emergency stop function and safety cable
- Foot pedal with two switches (press bar up/down) and safety step in the down switch

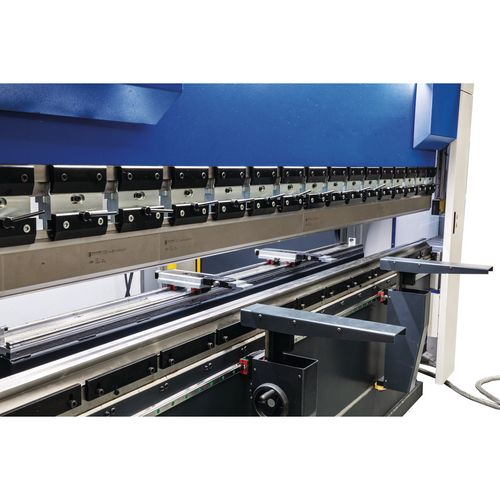

- Two front support arms that can be quickly adjusted on the side on the linear guide
- All linear guides and carriages from HIWIN motion control
- Control-controlled oil quantity distribution between the cylinders
- Monitoring of the relative cylinder position during bending process
- Direct programming of the bending angle via control
- Programmable bending and retraction speed and pressing time
- Manual, semi-automatic or automatic working mode selectable
- Honed cylinders, made from one block for highest accuracy and durability
- Hydraulic components from HAWE (valves) and KCL Hydraulic (pump)

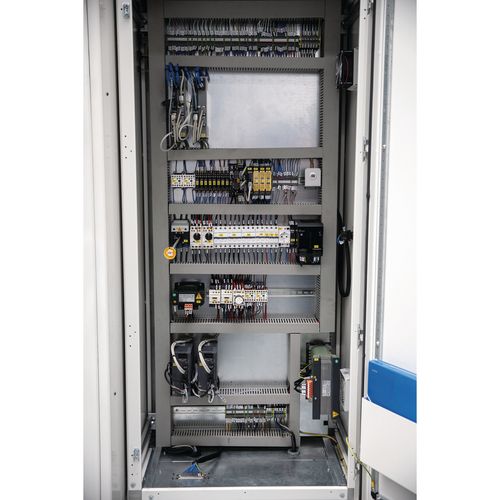

- Electrical components from Schneider and Mitsubishi Electric
- Large hydraulic tank to maintain the correct oil temperature
- Hydraulic system protected by pressure relief valve
- Drive motors protected by appropriate circuit breakers
- Machine body in a particularly heavy and tension-free welded construction
- Side doors easy to open and monitored by safety switches
- Rear area protection using a light barrier system from REER Italy
- Illumination of the work area by means of an LED bar in the press beam cover
Special accessories:
- Controls (DELEM DA-66T-2D, DELEM DA-69T-3D, Cybelec CybTouch 15, Cybelec CybTouch 19-2D, Cybelec CybTouch 19 MX-3D)
- Back gauge X/R/Z1/Z2 with X travel = 750 mm
- Back gauge X/R/Z1/Z2 + Delta X (200 mm) with X travel = 750 mm
- Backgauge X/X2/R1/R2/Z1/Z2 (tower version)
- Hydraulic upper tool clamp WILA Pro
- Hydraulic die clamp WILA Pro
- Manual central lubrication
- Automatic central lubrication
- Bending aids with motorized height adjustment - can be moved laterally
- Additional front support arm (without handwheel height adjustment)
- Additional rear stop finger (manually movable)
- Parking area 1,000 mm for front support arms or bending aids
- Oil cooler
- Oil warmer
- Special sizes on request
- Graphical 2D CNC control DELEM DA-58T with offline software TL
- Two linear encoders (GIVI) on Press bar for checking the desired position
- High-quality linear encoders with an accuracy of 0.01 mm
- CNC-controlled backgauge with two backgauge fingers
- X-axis linearly guided and driven by ball screws via servomotor
- R-axis guided linearly and driven by ball screws via servomotor
| Pressing force | 220 t |
| Bending length | 3150 mm |
| Distance between columns | 2600 mm |
| Stroke | 275 mm |
| Rapid mode | 140 mm/s |
| Bending speed | 1 – 10 mm/s |
| Retraction | 100 mm/s |
| Table height | 930 mm |
| Table width | 90 mm |
| X axis stroke | 5 - 750 mm |
| X axis speed | 500 mm/s |
| Oil tank capacity | 307 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 4250 mm |
| Width/depth approx. | 2000 mm |
| Height approx. | 3150 mm |
| Weight approx. | 15600 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 18,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Crowning | motor |
