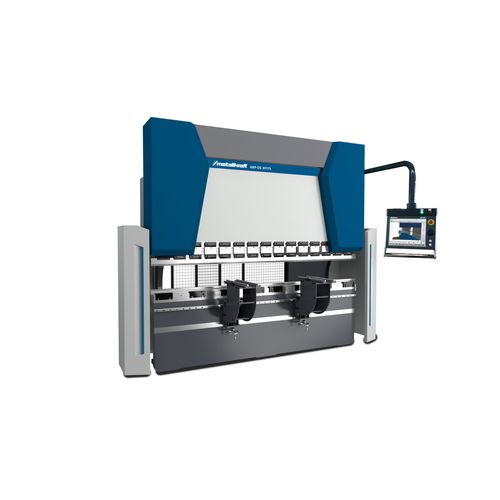

CNC-controlled, hydraulic press brake
GBP DS 40175
with graphic 2-D control
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4544003
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard version:
- Heavy and robust
- welded steel construction
- Optimized hydraulic unit with reduced noise level
- Graphic 2D CNC control Cybelec CybTouch 15 with large 15" touch screen, ergonomically mounted on swivel arm
- VisiTouch 2D offline software
- Energy, environment and machine friendly ECO mode - automatic pump shutdown when not in use for several minutes X Y1, Y2 and X-axes CNC controlled
- Motorized backgauge driven by backlash-free ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Motorized table crowning, CNC controlled
- Two adjustable front support arms
- Promecam/Amada tooling system
- Upper die clamping with lateral removal of dies
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Slightly cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Safety laser Fiessler AKAS II moving with the upper die Safety PLC Fiessler FMSC
- Side and rear doors electronically monitored
- High quality hydraulic and electronic components
- Mobile double foot pedal
- LED work area lighting
- Oil filling
Special accessories:
- Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
- 4-, 5-, or 6-axis backgauge systems
- Additional backgauge fingers
- Hydraulic or pneumatic
tool clamping system
| Pressing force | 175 t |
| Bending length | 4050 mm |
| Distance between columns | 3550 mm |
| Stroke | 350 mm |
| Rapid mode | 150 mm/s |
| Bending speed | 10 mm/s |
| Retraction | 130 mm/s |
| Table height | 920 mm |
| Table width | 98 mm |
| X axis stroke | 750 mm |
| X axis speed | 300 mm/s |
| Oil tank capacity | 300 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 4740 mm |
| Width/depth approx. | 2500 mm |
| Height approx. | 3025 mm |
| Weight approx. | 13100 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 22 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Crowning | CNC controlled |
