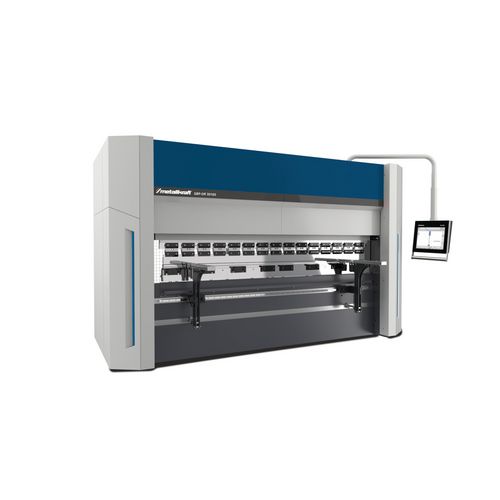

Electric CNC press brake with belt drive
GBP DR 30150
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4563003
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard design:
- Purely electric drive via servo motors, belts and pulleys reduces energy consumption and noise pollution
- Very high pressing speed with 20mm/s
- No maintenance and leakage of hydraulics - no hydraulic oil required
- Machine body as dimensionally stable, closed O-frame - no springing up
- 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm
- Offline software Profile-T Lite
- Y1, Y2, X and R axes CNC controlled
- Motorized backgauge driven by zero-backlash ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Safety laser Nuova DSP-AP moving with the upper beam
- Safety PLC Nuova MCS
- Motorized CNC control automatically calculated by the CNC
- Promecam/Amada tooling system
- Quick upper die clamping with lateral die removal
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Slightly cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Two quick adjustable front support arms on linear rails
- High quality electronic components
- LED work area illumination
- Mobile double foot pedal
Special accessories:
- Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
- 4-, 5-, or 6-axis backgauge systems
- Additional backgauge fingers
- Hydraulic or pneumatic tool clamping
| Pressing force | 150 t |
| Bending length | 3050 mm |
| Distance between columns | 3050 mm |
| Stroke | 300 mm |
| Rapid mode | 100 mm/s |
| Bending speed | 20 mm/s |
| Retraction | 100 mm/s |
| Table height | 920 mm |
| Table width | 98 mm |
| X axis stroke | 750 mm |
| X axis speed | 300 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 4740 mm |
| Width/depth approx. | 2000 mm |
| Height approx. | 2680 mm |
| Weight approx. | 13200 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 22 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Crowning | CNC controlled |
