Pressing force | 100 t |
Bending length | 3050 mm |
Distance between columns | 3050 mm |
Stroke | 300 mm |
Rapid mode | 75 mm/s |
Bending speed | 20 mm/s |
Retraction | 75 mm/s |
Table height | 920 mm |
Table width | 98 mm |
X axis stroke | 750 mm |
X axis speed | 300 mm/s |
VPE | 1 |

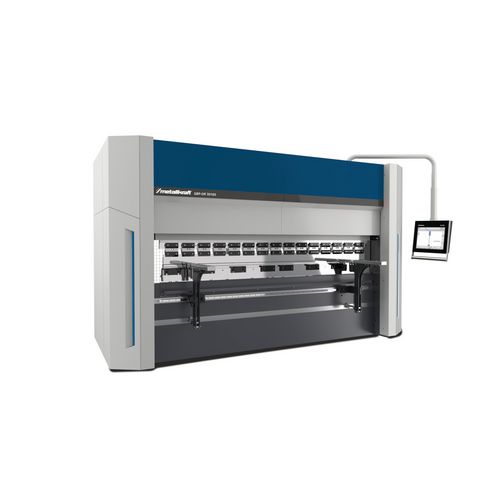

Electric CNC press brake with belt drive
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4563001
Standard design:
Special accessories:
Pressing force | 100 t |
Bending length | 3050 mm |
Distance between columns | 3050 mm |
Stroke | 300 mm |
Rapid mode | 75 mm/s |
Bending speed | 20 mm/s |
Retraction | 75 mm/s |
Table height | 920 mm |
Table width | 98 mm |
X axis stroke | 750 mm |
X axis speed | 300 mm/s |
VPE | 1 |
Dimensions and weights | |
---|---|
Length approx. | 4220 mm |
Width/depth approx. | 1960 mm |
Height approx. | 2500 mm |
Weight approx. | 6500 kg |
Electrical Data | |
---|---|
Drive motor output | 11 kW |
Supply voltage | 400 V |
Mains frequency | 50 Hz |
Crowning | CNC controlled |
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
