| Rapid mode | 100 mm/s |
| Retraction | 80 mm/s |
| Table width | 98 mm |
| X axis stroke | 500 mm |
| X axis speed | 500 mm/s |

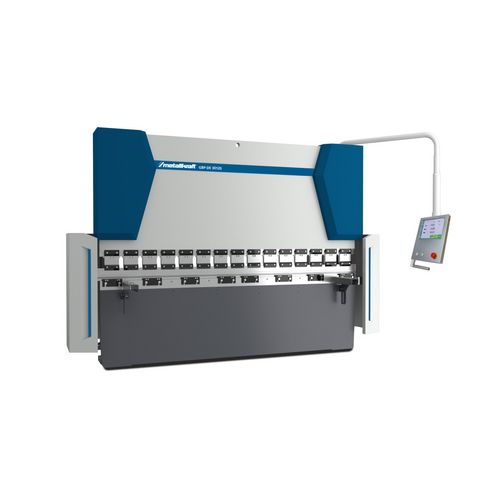

CNC-controlled, hydraulic press brake
GBP DE
With simple equipment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
No Variationsgroups defined.
Productdetails
Standard design:
- Rugged welded steel construction
- Graphical 2D CNC control Cybelec CybTouch 12 with large 12" touch screen, ergonomically mounted on swivel arm
- Offline software VisiTouch 2D
- Energy- and environment- and machine-friendly ECO mode - automatic pump shutdown when not in use for several minutes
- Y1, Y2 and X axes CNC controlled
- Motorized backgauge driven by backlash-free ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Motorized table crowning, CNC controlled
- Manual height adjustment of the stop fingers (R-axis)
- Two adjustable front support arms
- Promecam/Amada tooling system
- Upper die clamping with lateral removal of dies
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Light cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Safety laser Fiessler AKAS II moving with the upper beam
- Safety PLC Fiessler FMSC
- Side and rear doors electronically monitored
- High quality hydraulic and electronic components
- Mobile double foot pedal
- Oil filling
Special accessories:
- Various CNC controls (e.g.: CybTouch 15, Delem DA-58T or DA-66T)
- Motorized R-axis
- Motorized Z1/Z2-axis
- Additional backgauge fingers
- Manual or motorized central lubrication
- Additional front support arms
- Second foot pedal for 2-man operation
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 – 60 Hz |
Unit: pc(s).
