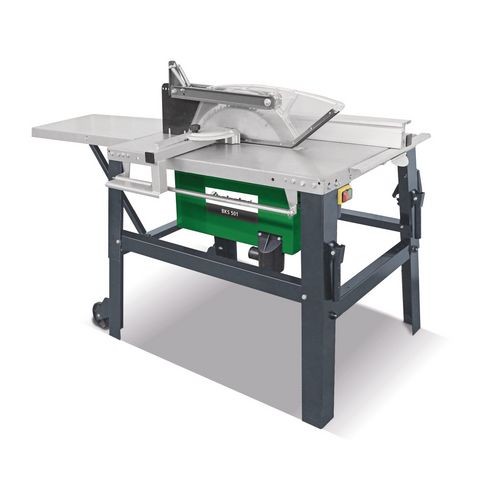

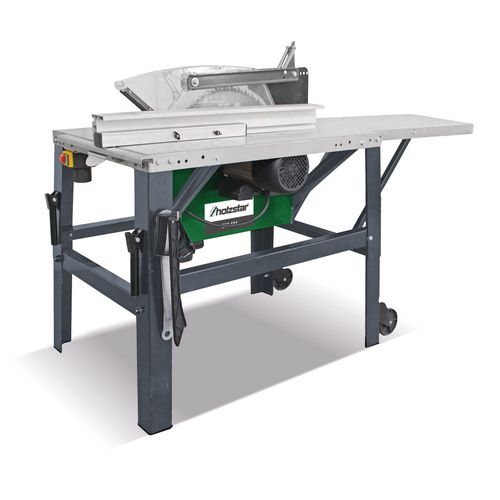

    Construction circular saw

    BKS 501

    769,00 EUR excl. Tax / pc(s).
    915,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    699,00 EUR excl. Tax / pc(s).
    831,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5740050

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Transparent protective hood for the safety of the user and for an optimal view of the cutting line
    • Angle adjustable cross cutting device with wedge cutting gauge on rod üguided by maintenance-free slide bearings
    • aluminium parallel fence with high and flat contact edge and eccentric clampingfacilitates the trimming of boards, rip cuts, bevel and angle cuts
    • Folding table extension for long workpieces
    • Easy to move due to integrated running gear and folding transport handles

    Equipment:

    • Pendulum safety guard, transparent
    • Angle-adjustable cross-cutting device with wedge cutting gauge, fold-down
    • Aluminium parallel fence with high and flat contact edge
    • Table extension (800 x 400 mm), fold-down
    • Large crane eyelets
    • Phase inverter
    • Brackets for aluminium parallel fence and mounting tool



    • Angle adjustable cross cutting device with wedge cutting gauge on round bar guided by maintenance-free slide bearings
    • Aluminium parallel fence with high and flat contact edge and eccentric clamping
    • Folding table extension
    • Easy to move due to integrated running gear



    Circular saw unit
    Max. cutting height 90°150 mm
    (Main) saw blade diameter500 mm
    (Main) saw blade speed2800 min¯¹
    Dimensions and weights
    Length approx.1870 mm
    Width/depth approx.810 mm
    Height approx.1170 mm
    Weight approx.103 kg
    Electrical Data
    Absorbed power drive motor4.2 kW
    Efficiency class drive motorIE3
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter bottom95 mm
    Saw blade protection extraction port diameter50 mm
    Sliding carriage and table
    Table length1000 mm
    Table width660 mm
    Work height850 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1x saw blade 500x30x4 mm Z44
    • push stick
    • push handle
    • pendulum saw blade protection hood
    • tool for saw blade change
    • foldable table extension



    Table lengthening✔
    Saw blade cover✔
