Surface and thickness planer

ADH 41 SPIRAL

With spiral cutter block, for dressing solid wood boards, planks and mouldings

6.499,00 EUR excl. Tax / pc(s).
7.733,81 EUR incl. 19% Tax / pc(s).
Promotional price *
5.899,00 EUR excl. Tax / pc(s).
7.019,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Art.-No. 5940042

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • Thickness planer for accurate, angular planing of smooth surfaces

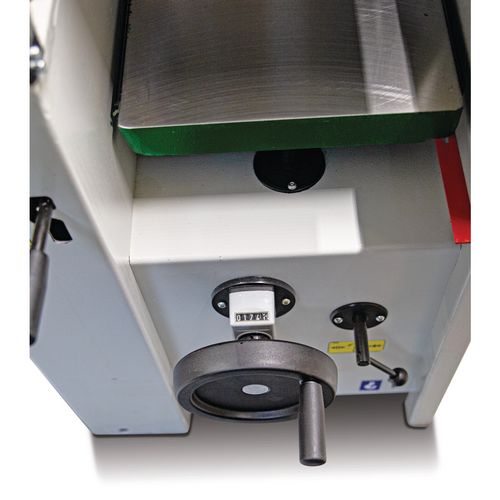

    • Thicknessing table with central column guide, additional guide and mechanical counter (accuracy 0,1mm)
    • Large dimensioned planing tables made of grey cast iron with ground surface
    • Folding up of the planing tables with spring support for a quick and comfortable changeover to thicknessing in seconds
    • Stable professional planing fence can be swivelled from 90 to +45°
    • Space-saving lateral guidance of the planing fence
    • High-quality workmanship and ergonomic design
    • Oblong hole drilling device available as accessory



    • Thicknessing planer for planing smooth surfaces at an exact angle
    • Sturdy professional fence can be tilted from 90 to +45°
    • Simultaneous folding up of the planing tables with spring support for quick and convenient conversion to planing within seconds

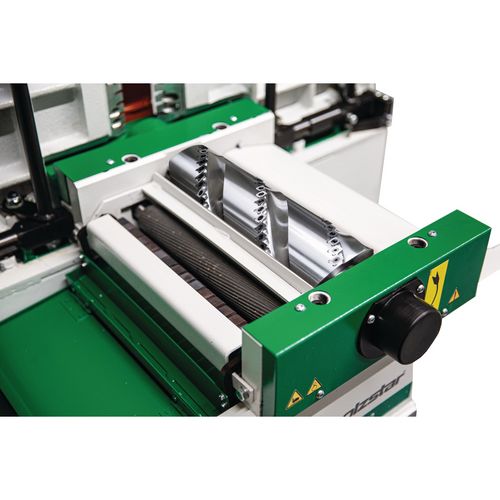

    • Precision bearing spiral knife shaft



    Dimensions and weights
    Length approx.1800 mm
    Width/depth approx.740 mm
    Height approx.1000 mm
    Weight approx.420 kg
    Electrical Data
    Drive motor output5.5 kW
    Supply voltage400 V
    Mains frequency50 Hz

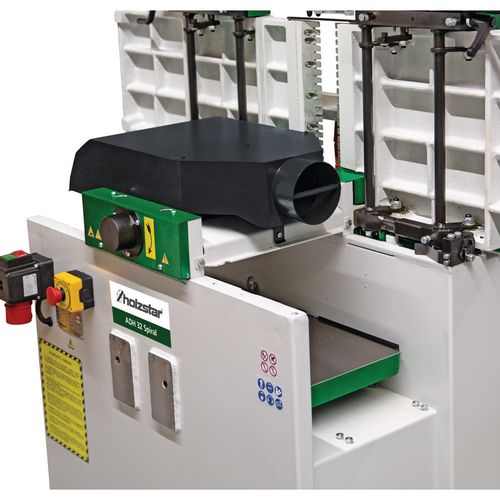

    Extraction port
    Extraction port diameter thickness120 mm
    Feed
    Speed8 m/min
    Jointing
    Max. cutting depth5 mm
    Planing stop pivoting range90 – 45 °
    Planing knife shaft
    TypeSPIRAL
    Number of planing blades66 St
    Speed4600 min¯¹
    Max. planing width410 mm
    Thickness
    Working height min.4 mm
    Working height max.225 mm
    Working length min.300 mm
    Max. cutting depth5 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Spiral cutter head mounted
    • Professional side dresser stop
