| Dimensions and weights | |
|---|---|
| Length approx. | 1500 mm |
| Width/depth approx. | 650 mm |
| Height approx. | 1000 mm |
| Weight approx. | 360 kg |
Surface and thickness planer

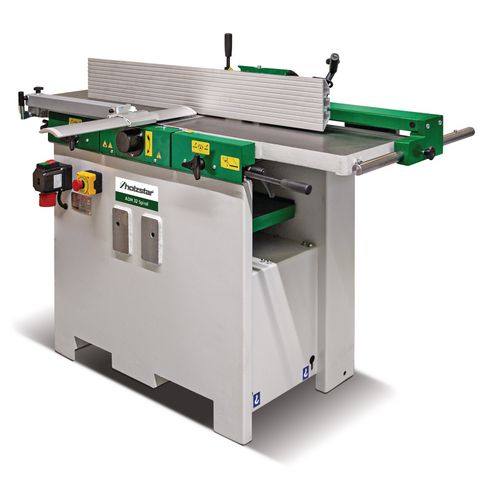

ADH 32 SPIRAL
With spiral cutter block, for dressing solid wood boards, planks and mouldings
5.099,00
EUR excl. Tax / pc(s).
6.067,81 EUR incl. 19% Tax / pc(s).
6.067,81 EUR incl. 19% Tax / pc(s).
Promotional price *
4.899,00 EUR excl. Tax / pc(s).5.829,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5940033
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Thickness planer for accurate, angular planing of smooth surfaces

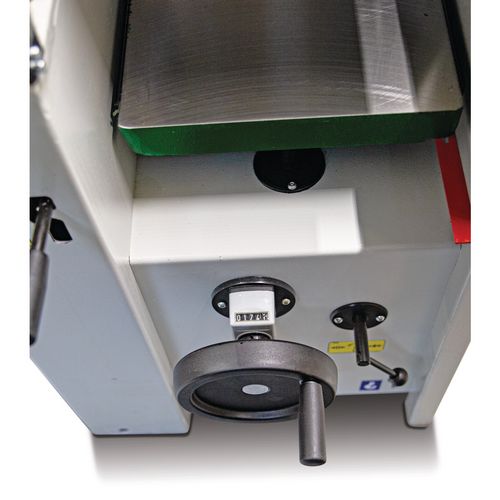

- Thicknessing table with central column guide, additional guide and mechanical counter (accuracy 0,1mm)
- Large dimensioned planing tables made of grey cast iron with ground surface

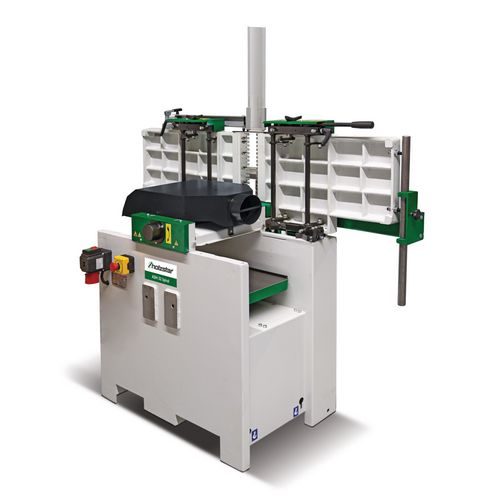

- Folding up of the planing tables with spring support for a quick and comfortable changeover to thicknessing in seconds

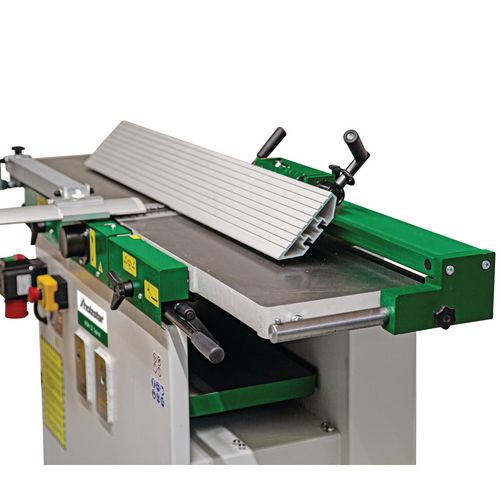

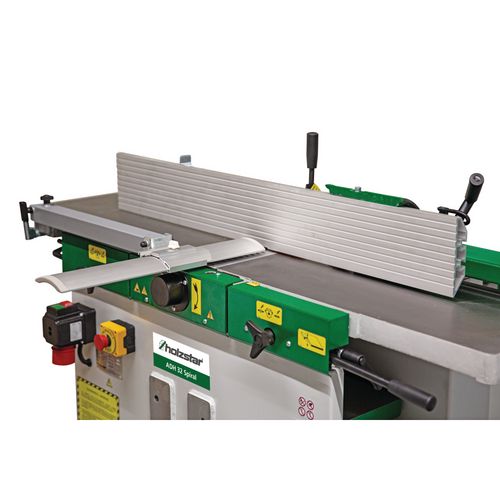

- Stable professional planing fence can be swivelled from 90 to +45°
- Space-saving lateral guidance of the planing fence
- High-quality workmanship and ergonomic design
- Oblong hole drilling device available as accessory
- Thicknessing planer for planing smooth surfaces at an exact angle
- Sturdy professional fence can be tilted from 90 to +45°
- Simultaneous folding up of the planing tables with spring support for quick and convenient conversion to planing within seconds

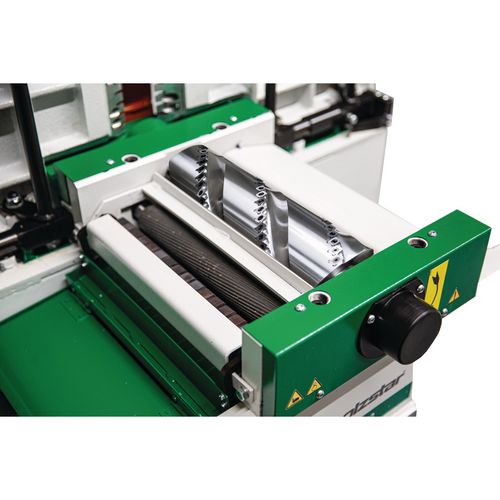

- Precision bearing spiral knife shaft
| Electrical Data | |
|---|---|
| Drive motor output | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|

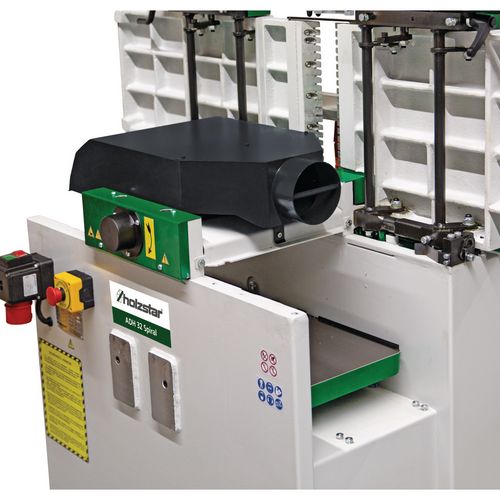

| Extraction port diameter thickness | 120 mm |
| Feed | |
|---|---|
| Speed | 8 m/min |
| Jointing | |
|---|---|
| Max. cutting depth | 5 mm |
| Planing stop pivoting range | 90 – 45 ° |
| Planing knife shaft | |
|---|---|
| Type | SPIRAL |
| Number of planing blades | 3 St |
| Speed | 4600 min¯¹ |
| Max. planing width | 320 mm |
| Spiral cutter | |
|---|---|
| Number of knives spiral cutter | 51 Pcs. |
| Thickness | |
|---|---|
| Working height min. | 4 mm |
| Working height max. | 225 mm |
| Working length min. | 300 mm |
| Max. cutting depth | 5 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Spiral cutter head mounted
- Professional side dresser stop
