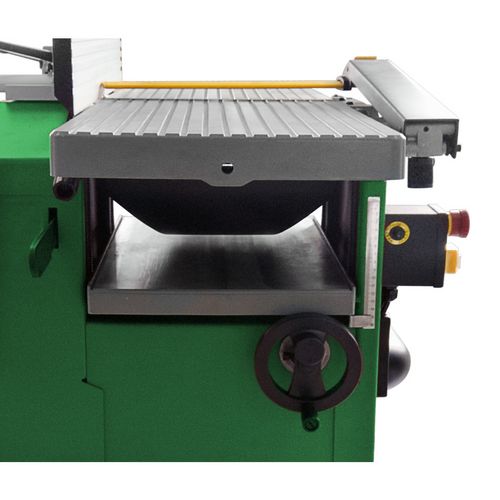

    Surface and thickness planer

    ADH 3050 (230V)

    Compact model with integrated suction for do-it-yourselfers and craftsmen

    1.269,00 EUR excl. Tax / pc(s).
    1.510,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    999,00 EUR excl. Tax / pc(s).
    1.188,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5904130

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For angular joining (90°) and precise planing of solid wood boards and moldings
    • Automatic workpiece feed
    • Rubberized extraction roller protects the wood surface when planing thick
    • Suction integrated in the substructure
    • With chassis as standard
    • Simple and precise adjustment of the chip removal
    • Dressing table made of milled cast aluminum
    • Space-saving compact design



    • For angular joining (90°) and precise planing of solid wood boards and moldings
    • Automatic workpiece feed
    • Rubberized extraction roller protects the wood surface when planing thick
    • Suction integrated in the substructure
    • With chassis as standard



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.1140 mm
    Width/depth approx.800 mm
    Height approx.1075 mm
    Weight approx.93 kg
    Electrical Data
    Drive motor output1.25 kW
    Absorbed power drive motor1,8 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Suction hood connection diameter100 mm
    Suction unit connection diameter75 mm
    Feed
    Speed8.5 m/min
    Jointing
    Max. cutting depth3 mm
    Planing stop pivoting range90 – 45 °
    Planing knife shaft
    TypeStrip planer blade shaft
    Number of planing blades2 St
    Speed6700 min¯¹
    Max. planing width305 mm
    Thickness
    Working height min.6 mm
    Working height max.160 mm
    Working length min.250 mm
    Max. cutting depth2 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Suction connection hose, Ø 76 mm, 920 mm
    • Reduction 100/75 mm
    • Strip planer knife set
    • Chip bag
