Productdetails
- For angular joining (90 °) and straightforward dressing of solid wood boards and strips
- Simple and precise adjustment of the chip removal of up to 3 mm for dimensionally accurate thickness planing
- Easy and convenient table height adjustment thanks to handwheel
- Automatic workpiece feed (5 m / min)

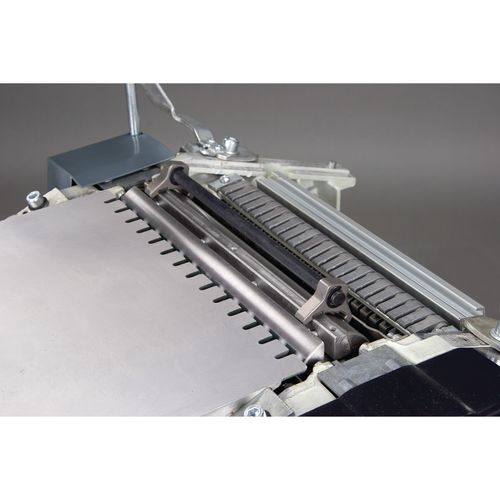

- Geared steel pickup roller for smooth and constant logging
- A rubberized draw roller protects the surface when thicknessing
- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Knife shaft with 2 HSS planing knives
- Large thickness table made of gray cast iron with polished surface, 4-fold
- Integrated, replaceable chip extractor hood
- The pluggable Extraction hood is used for both jointing and thickness planing
Dimensions and weights |
---|
Length approx. | 1130 mm |
Width/depth approx. | 595 mm |
Height approx. | 940 mm |
Weight approx. | 66 kg |
Electrical Data |
---|
Drive motor output | 1,5 kW |
Absorbed power drive motor | 2.0 kW |
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Extraction port |
---|
Extraction port diameter thickness | 120 mm |
Jointing |
---|
Max. cutting depth | 3 mm |
Planing stop pivoting range | 90 – 45 ° |
Planing knife shaft |
---|
Type | Strip planer blade shaft |
Number of planing blades | 2 St |
Speed | 6500 min¯¹ |
Max. planing width | 260 mm |
Thickness |
---|
Working height min. | 4 mm |
Working height max. | 160 mm |
Unit: pc(s).
Packaging unit: 1
- Knife shaft with 2 HSS planing knives
- Planer knife adjustment gauge
- Machine base with chassis
