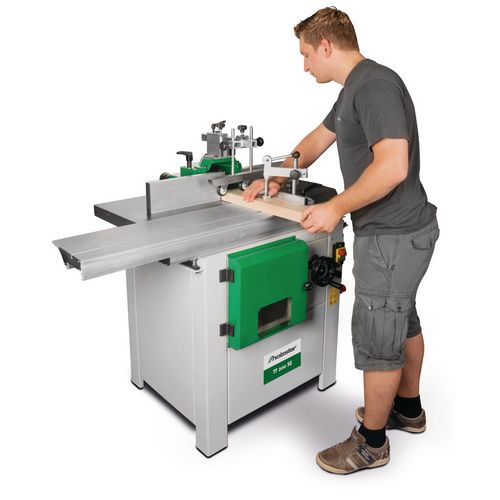

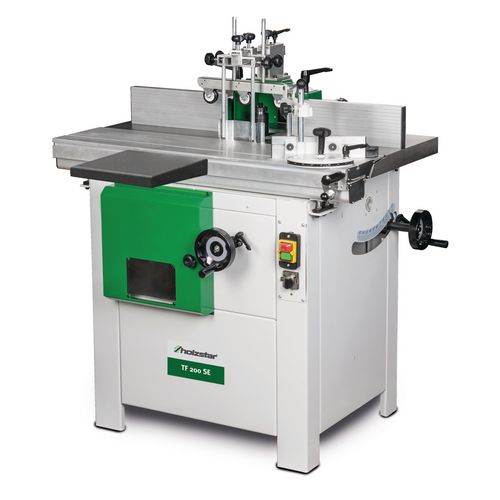

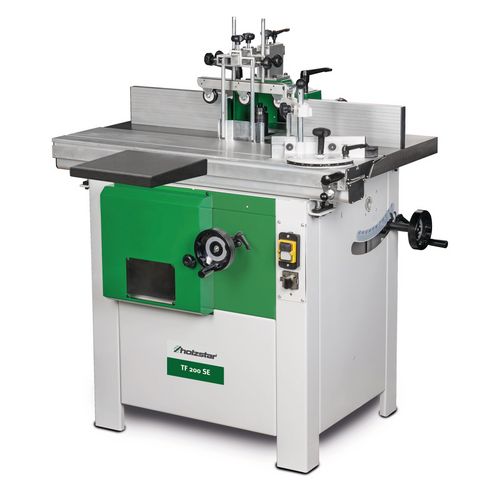

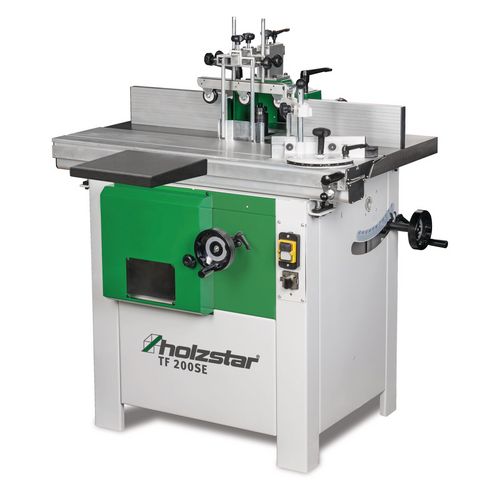

Table router
TF 200 SE
With aluminum slide carriage and swiveling milling spindle
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5902000
Are you interested in this product?
Put a request
Find Trader
Productdetails

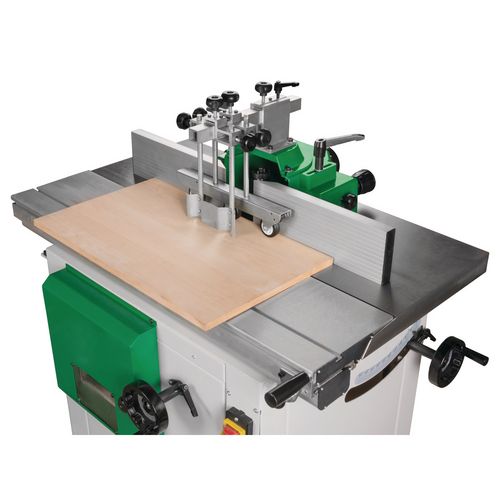

- Smooth sliding carriage for precise workpiece guidance

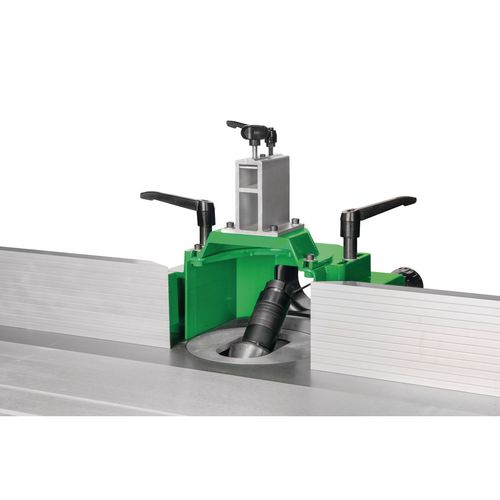

- Milling stop with fine adjustable aluminum stops

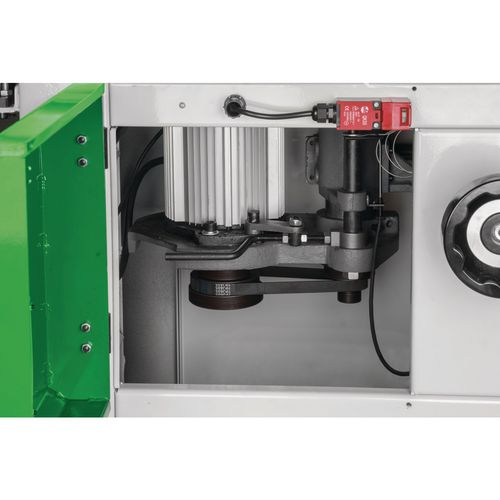

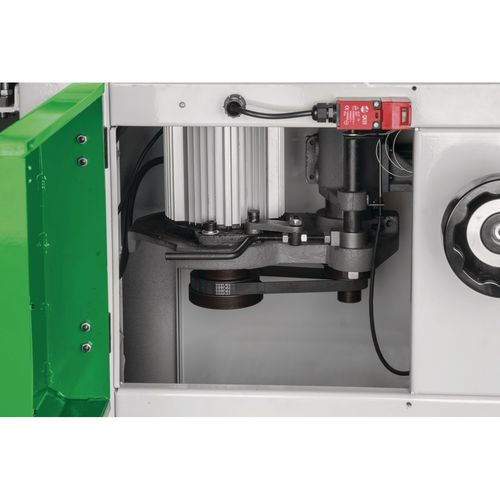

- Quick and easy change of the speed by means of splined belts
- Large working surface thanks to solid and torsion-free gray cast iron table

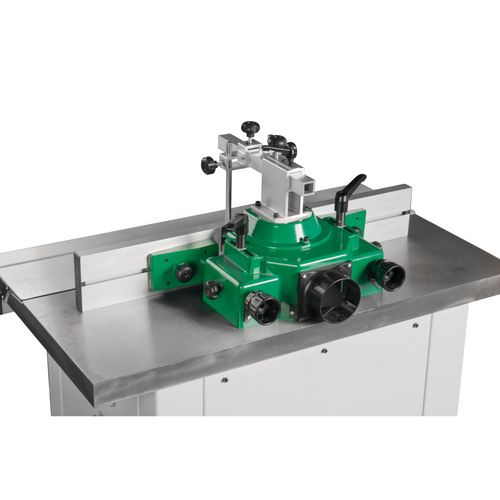

- Large dimensioning milling unit made of gray cast iron, swiveling from +5 to -45 °
- Selector switch for clockwise or anti-clockwise rotation of the milling spindle
- Backward swiveling milling spindle for optimum use of a feed unit, maximum safety and a clean milling pattern
- Downholder for precise workpiece guidance
- Boom table available as accessory
| Dimensions and weights | |
|---|---|
| Length approx. | 1000 mm |
| Width/depth approx. | 850 mm |
| Height approx. | 1200 mm |
| Weight approx. | 218 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2,8 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 100 mm |
| Milling cutter diameter max. | |
|---|---|
| Max. tool diamter lowerable | 180 mm |
| Milling spindle | |
|---|---|
| Angle | +5 – -45 ° |
| Usable length | 100 mm |
| Speed(s) | 1800 / 3000 / 6000 / 9000 min¯¹ |
| Arbor diameter | 30 mm |
| Work table | |
|---|---|
| Table height | 900 mm |
| Sliding carriage length | 1000 mm |
| Sliding carriage width | 240 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- miter
- down device
- Frässchutzhaube
