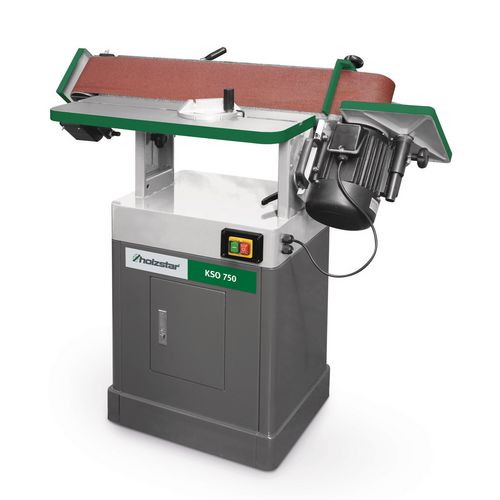

Productimage for KSO 750 (400V)
Brandimage to Product KSO 750 (400V)

Edge sanding machine

KSO 750 (400V)

With swiveling sanding unit and oscillating sanding belt

1.089,00 EUR excl. Tax / pc(s).
1.295,91 EUR incl. 19% Tax / pc(s).
Promotional price *
849,00 EUR excl. Tax / pc(s).
1.010,31 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Art.-No. 5900750

Are you interested in this product?
  • Put a request
  • Find Trader
  • Productdetails

    • With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
    • With height-adjustable sanding table
    • Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
    • Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding
    • Table height adjustment by handwheel
    • Robust gray cast iron work table with T-slots, stable machine stand when working
    • With height-adjustable additional table for contour sanding
    • Quick and easy sanding belt change via quick clamping system
    • Spring-loaded clamping device for a uniform belt tension
    • Sanding sole with graphite coating as standard
    • Extraction nozzle Ø 100 mm
    • With lockable storage option in the standard substructure



    Room amenities:

    • Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used



    Dimensions and weights
    Length approx.1300 mm
    Width/depth approx.750 mm
    Height approx.1200 mm
    Weight approx.120 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Sanding machine
    Sanding belt length2270 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)16.3 m/s
    Sanding surface length820 mm
    Sanding surface width170 mm
    Work top(s)
    Work table height adjustment80 mm
    Longitudinal table length750 mm
    Longitudinal table width250 mm
    Longitudinal table height adjustment80 mm
    Min. cross table height980 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Miter gauge
    • Workpiece stop 499 x 178 x 69 mm
    • Sanding belt, grit K60
