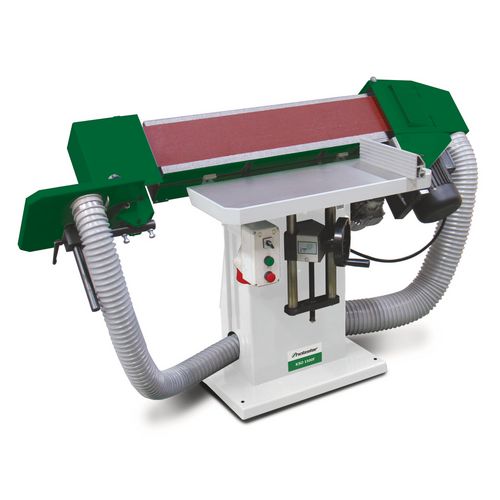

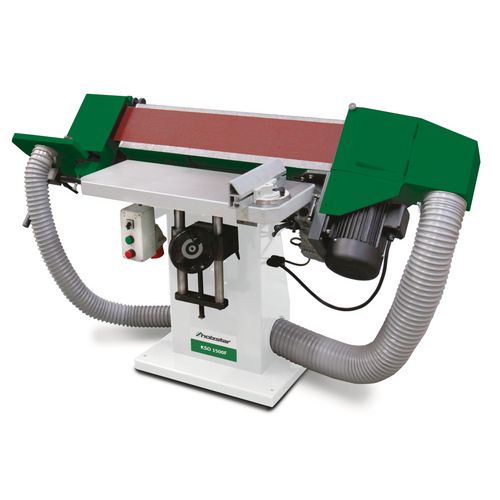

    Edge sanding machine

    KSO 1500 F

    With swiveling sanding unit and oscillating sanding belt for perfect sanding results

    2.319,00 EUR excl. Tax / pc(s).
    2.759,61 EUR incl. 19% Tax / pc(s).
    Promotional price *
    1.799,00 EUR excl. Tax / pc(s).
    2.140,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5901500

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Machine stand made of welded steel guarantees high torsional rigidity and vibration-free working
    • sanding unit can be swiveled up to 45 ° via lever for sanding straight and bevelled edges
    • Oscillating sanding belt with separate gear motor for better sanding results
    • Oscillation optionally switchable
    • sanding sole with graphite coating for a longer service life of the sanding belt
    • Height-adjustable additional table with suction for sanding radii
    • Automatic compensation of belt length differences due to spring-loaded belt tension



    Dimensions and weights
    Length approx.1720 mm
    Width/depth approx.700 mm
    Height approx.1030 mm
    Weight approx.180 kg
    Drive output
    Oscillation motor0.25 kW
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter120/80 mm
    Sanding machine
    Sanding belt length2600 mm
    Sanding belt width150 mm
    Circumferential belt speed(s)20 m/s
    Sanding surface length850 mm
    Sanding surface width200 mm
    Work top(s)
    Work table height adjustment180 mm
    Longitudinal table length750 mm
    Longitudinal table width300 mm
    Longitudinal table height adjustment180 mm
    Min. cross table height740 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Miter
    • Sanding belt, grit K100
