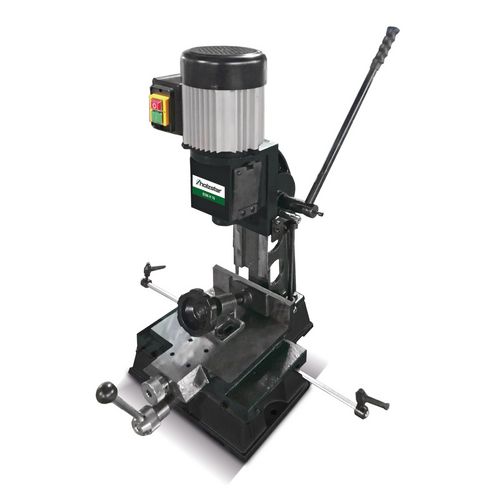

    Productimage for BSM-H 16
    Brandimage to Product BSM-H 16

    Drilling and mortising machine

    BSM-H 16

    Compact machine for drilling and mortising

    469,00 EUR excl. Tax / pc(s).
    558,11 EUR incl. 19% Tax / pc(s).
    Promotional price *
    369,00 EUR excl. Tax / pc(s).
    439,11 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5906116

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • For easy production of slot-pin connections
    • Solid cast construction of the machine frame with precise dovetail guides in each axis
    • Long lever for quill stroke for chiseling out with little effort
    • Movable clamping jaws can be mounted in three different positions
    • Two adjustable stops each for X and Y direction
    • The machine head is additionally held with a gas pressure spring for easier handling
    • Tool holder via drill chuck with gear rim



    • For easy production of slot-pin connections
    • Solid cast construction of the machine frame with precise dovetail guides in each axis
    • Long lever for quill stroke for chiseling out with little effort
    • Two adjustable stops each for X and Y direction
    • The machine head is additionally held with a gas pressure spring for easier handling



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.270 mm
    Width/depth approx.480 mm
    Height approx.780 mm
    Weight approx.39 kg
    Electrical Data
    Rating0.37 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Spindle
    Max. height of workpiece110 mm
    Max. depth of workpiece125 mm
    Max. Chisel stroke76 mm
    Chisel sizes6 – 16 mm
    Drill chuck mountB16-13mm
    Speed1400 min¯¹
    Work top(s)
    Work table lenth180 mm
    Work table width150 mm
    Table travel X80 mm
    Table travel Y65 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • 1x gouge 6,35mm (1/4")
    • 1x gouge 9,5mm (3/8")
    • 1x gouge 12,7mm (1/2")
