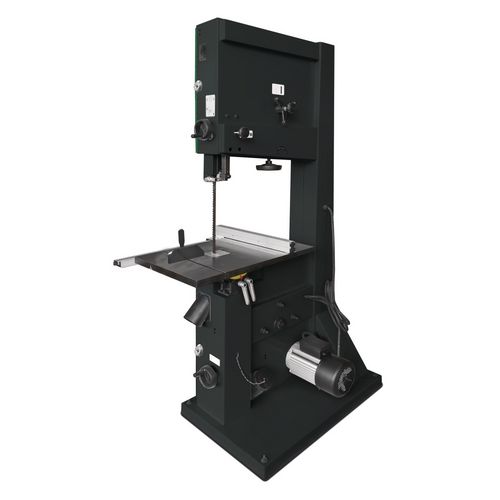

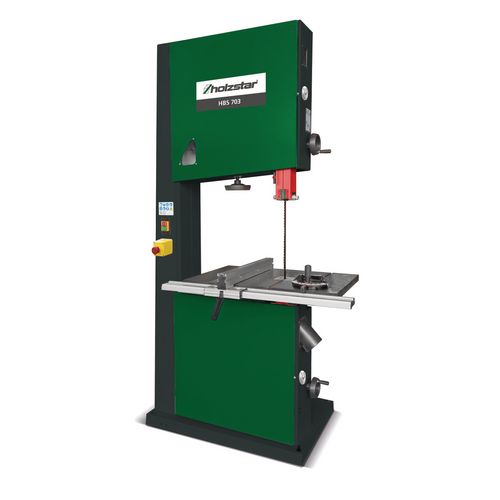

Woodbandsaw
HBS 703
Precision saws with great cutting performance
3.329,00
EUR excl. Tax / pc(s).
3.961,51 EUR incl. 19% Tax / pc(s).
3.961,51 EUR incl. 19% Tax / pc(s).
Promotional price *
3.099,00 EUR excl. Tax / pc(s).3.687,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5941173
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty design with high dead weight for maximum running smoothness
- Quiet and precise running thanks to torsion-resistant machine housing
- Precisely adjustable aluminium parallel fence
- Cast-iron flywheels with rubber coating and chip scraper brush
- Large cast-iron saw table, swivels from 0° to +45° with ground and polished surface
- Precise cutting height adjustment via toothed rack with millimetre scale
- Two suction ports
- Heavy-duty design with high dead weight for maximum running smoothness
- Smooth and precise running thanks to torsion-resistant machine housing
- Cast-iron flywheels with rubber coating and chip scraper brush
- Large cast iron saw table, swivels from 0° to +45° with ground and polished surface
- Precise cutting height adjustment via toothed rack with millimetre scale
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 430 mm |
| Max. cutting height 45° | 258 mm |
| Max. cutting width with stop | 415 mm |
| Max. cutting width without stop | 700 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 2250 mm |
| Weight approx. | 308 kg |
| Electrical Data | |
|---|---|
| Delivery power | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 1080 m/min |
| Length | 5020 mm |
| Width | 38 mm |
| Strength | 0,65 mm |
| Work top(s) | |
|---|---|
| Length | 640 mm |
| Width | 500 mm |
| Height | 940 mm |
| Extension length | 150 mm |
| Extension width | 500 mm |
| Pivot | 0 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Mitre fence
- Saw band
- Sliding stick
