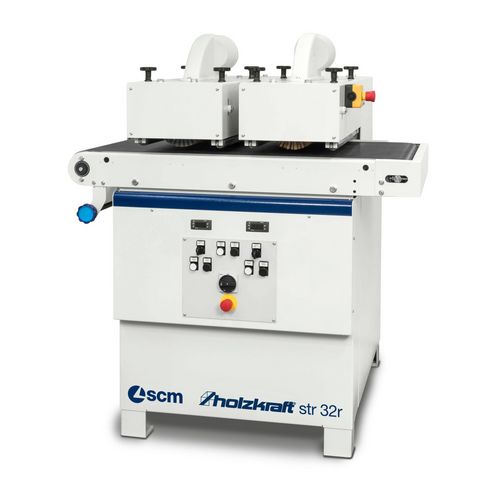

    Brush sanding and structure machine

    str 32r

    Two motorized height-adjustable units

    16.290,00 EUR excl. Tax / pc(s).
    19.385,10 EUR incl. 19% Tax / pc(s).
    Promotional price *
    12.899,00 EUR excl. Tax / pc(s).
    15.349,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5506132

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

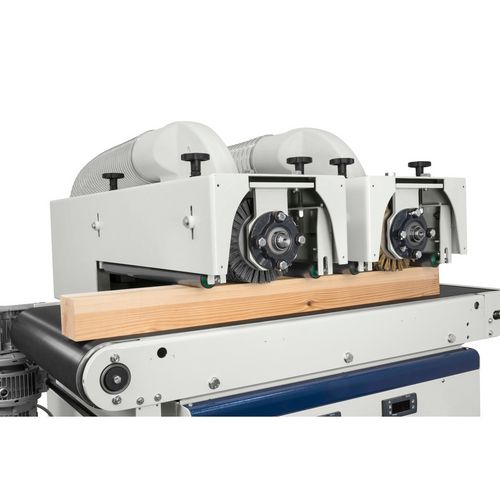

    • Constructed for professional structuring and sanding
    • Motorized height adjustment of the working units with digital display
    • Units can be switched on individually

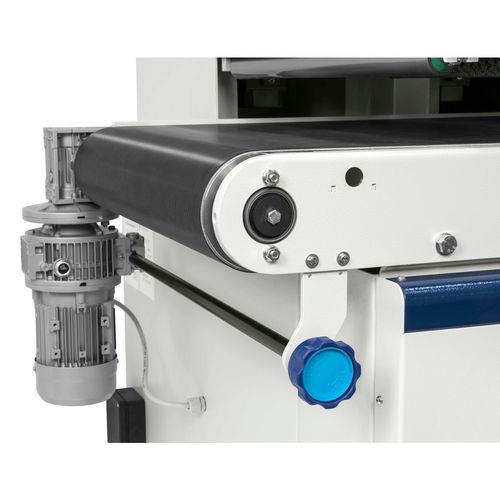

    • High-resistant rubberised conveyor belt
    • Infinite feed
    • Inlet height constant
    • Models str l with infinitely variable, inverter controlled brush speed: this allows the exact adaptation of the speed to the material. This makes it particularly suitable for sensitive materials.
    • Unit for saw cut optics available as an option



    • Motorized height adjustment of the units
    • Units individually switchable
    • Feed steplessly adjustable



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices

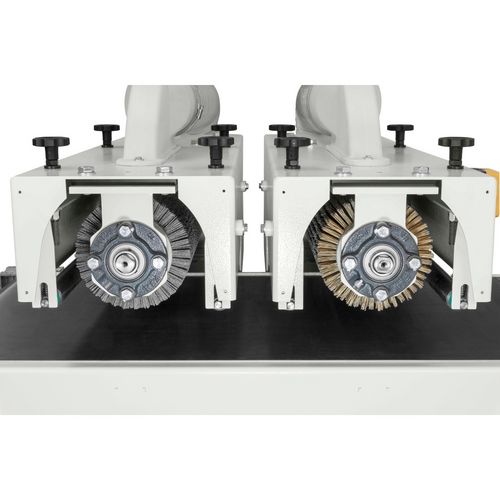

    Brushes
    Diameter190 mm
    Length300 mm
    Rotation1500 min¯¹
    Dimensions and weights
    Length approx.1300 mm
    Width/depth approx.1000 mm
    Height approx.1300 mm
    Weight approx.440 kg
    Electrical Data
    Drive motor output2 x 3.0 kW
    Input power of feed motor0.22 kW
    Total input power6.25 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 140 mm
    Feed unit
    Feed speed1 – 13 m/min
    Noise emission
    Sound power level Lw (idling without extraction unit)65 dB(A)
    Sanding machine
    Max. sanding width300 mm
    Workpiece
    Max. height300 mm
    Max. weight100 kg
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Steel brush 0.2 mm
    • Tynex brush K60



    Stürmer Maschinen GmbH
    Dr.-Robert-Pfleger-Str. 26
    96103 Hallstadt
    Deutschland / Germany
    info@stuermer-maschinen.de

    If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.

    Optional parts

    Optional parts can not be retrofitted and are available only when ordering new machines.
