Multiple combination
minimax cu 410es F 26 TERSA Storage equipment

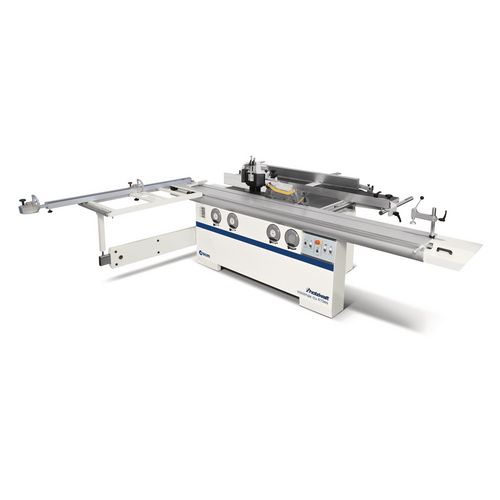

Maximum equipment for the professional. Multiple combi with TERSA knife shaft, miter cutting device and swiveling milling spindle.
33.590,00
EUR excl. Tax / pc(s).
39.972,10 EUR incl. 19% Tax / pc(s).
39.972,10 EUR incl. 19% Tax / pc(s).
Promotional price *
27.999,00 EUR excl. Tax / pc(s).33.318,81 EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5500558
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ø 350 mm main saw blade with 118 mm max. cutting height, which is also achieved with installed scoring saw blade
- Saw unit with permanently precise double swivel segment guide, 6 years Holzkraft warranty on wear of the swivel segments
- Scoring device with separate motor and Ø 120 mm saw blade, easily and conveniently adjustable from the outside
- High-precision sliding carriage made of anodized aluminium on hardened and flanged steel guide rails

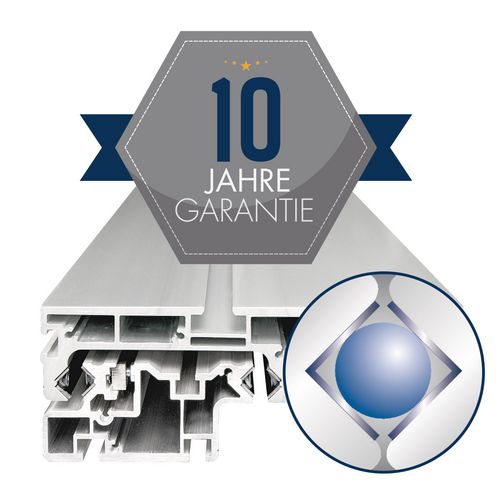

- Smooth-running and high-precision sliding carriage made of anodised aluminium with proven and permanently smooth-running ball contact system on hardened and flanged steel guide rails, 10-year warranty on wear of the guide rails.

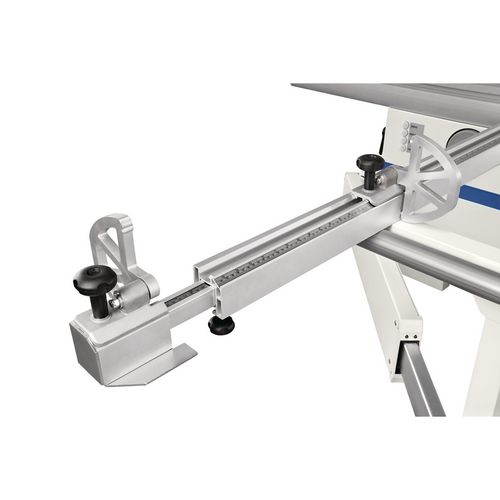

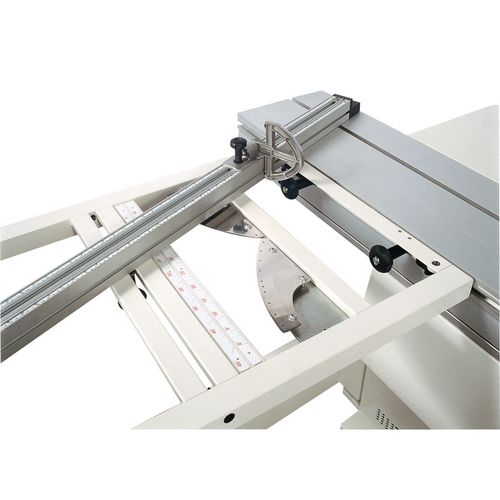

- Large edging frame (1200 x 650 mm) with roller and extendable aluminium telescopic fence up to max. 3300 mm
- Saw unit swivels from 90° to -45

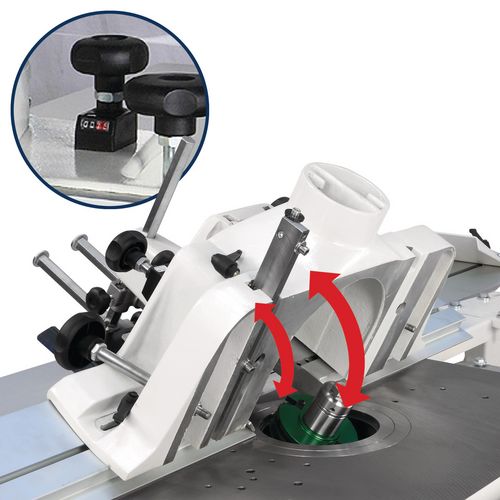

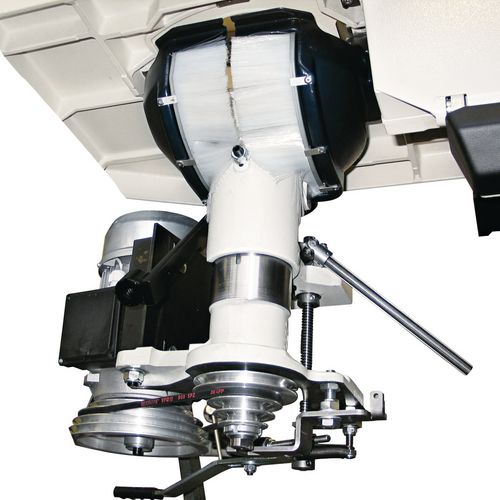

- Milling spindle can be swivelled from 90° to -45° to the rear into the milling fence
- Four milling speeds
- Right-left rotation of the milling spindle

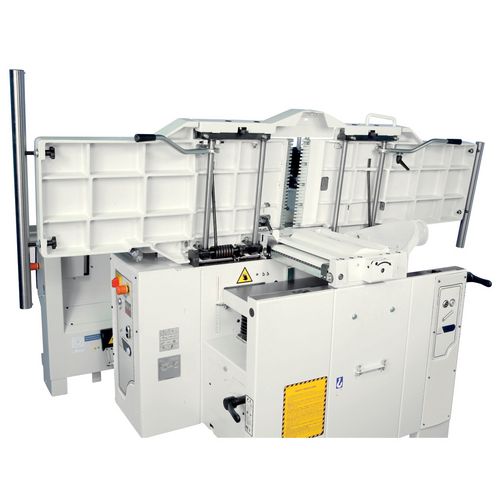

- Quick change to thickness planer thanks to parallel opening planing tables
- 2-stage feed in the thicknessing table

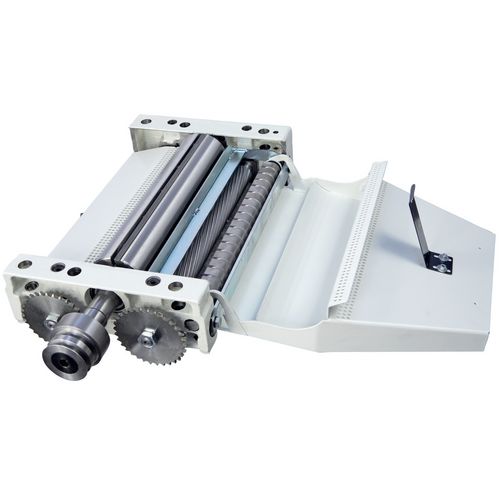

- Helical toothed steel infeed roller for even wood infeed

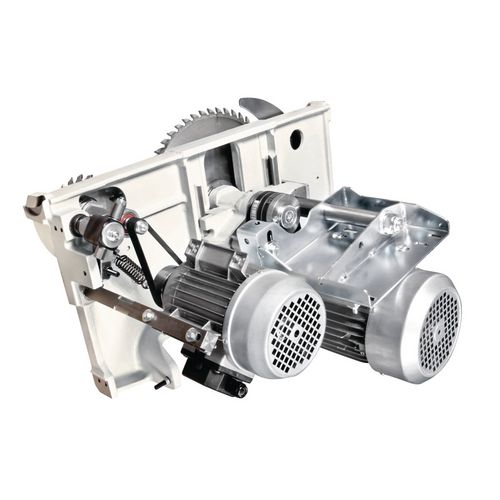

- Three independent industrial motors

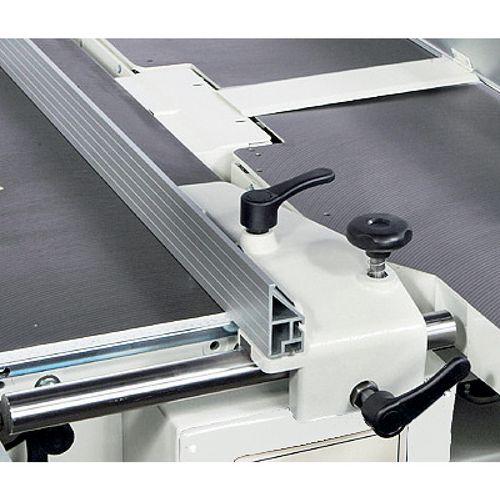

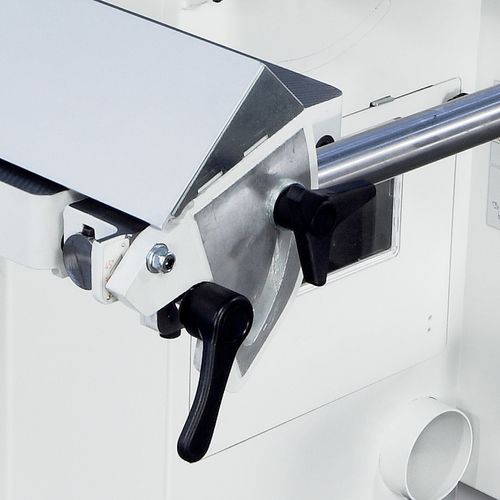

- With separate saw-parallel fence and separate jointing fence
- Main switch lockable
- Motor equipped with circuit breaker
| Circular saw unit | |
|---|---|
| Trimming length | 2600 mm |
| Cutting width with rip fence | 1000 mm |
| Max. cross-cutting width left of saw blade | 3300 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height at 90° | 104 mm |
| Max. cutting height at 45° | 68 mm |
| Max. saw blade protrusion 90° | 118 mm |
| Max. saw blade protrusion 45° | 84 mm |
| Diameter of (main) saw blade | 350 mm |
| Explanation about diameter of (main) saw blade | with scorer |
| (Main) saw blade speed | 4200 min¯¹ |
| Dimensions and weights | |
|---|---|
| Weight approx. | 1300 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 3 x 5.0 kW |
| Scoring motor power | 0.55 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 3 x 120 mm |
| Saw blade protection extraction port diameter | 60 mm |
| Feed | |
|---|---|
| Speed | 6 - 12 m/min |
| Installation information | |
|---|---|
| Space requirement length | 5960 mm |
| Space requirement width/depth | 5050 mm |
| Space requirement explanation | The dimensions take into account maximum travel distances or useful lengths. |
| Machine body length | 1948 mm |
| Machine body width/length | 1440 mm |
| Work area length | 1600 mm |
| Work area width/depth | 2300 mm |
| Explanation about work area | Please add the given dimensions with the required space to obtain the free space recommended for the machine. |
| Jointing | |
|---|---|
| Infeed table width | 410 mm |
| Infeed table length | 2200 mm |
| Max. cutting depth | 5 mm |
| Milling cutter diameter max. | |
|---|---|
| lowerable | 240 mm |
| Pin milling | 320 mm |
| Milling spindle | |
|---|---|
| Angle | 0 – -45 ° |
| Mandrel diameter | 30 mm |
| Usable length | 125 mm |
| Speed(s) | 3500/6000/8000/10000 min¯¹ |
| Planing knife shaft | |
|---|---|

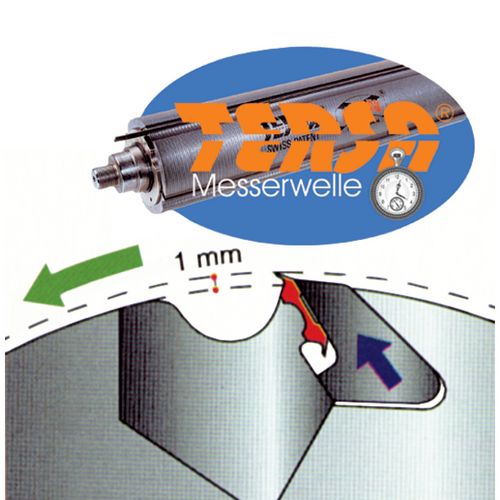

| Type | TERSA |
| Diameter | 95 mm |
| Number of planing blades | 4 St |
| Speed | 5000 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding table length | 2660 mm |
| Sliding table width | 360 mm |
| Sliding table height | 142 mm |
| Table length | 1250 mm |
| Table width | 430 mm |
| Table height | 900 mm |
| Thickness | |
|---|---|
| Table length | 775 mm |
| Table width | 410 mm |
| Working height min. | 3 mm |
| Working height max. | 240 mm |
| Max. cutting depth | 5 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- separate saw-parallel fence
- separate dressing and joining fence
- arc milling protection hood
- 4-knife Tersa planer shaft
- Anodised aluminium sliding table
- Gradation at the fence
- Inclinable milling unit
- Aluminium fence jaws
- Folding fences
- Material roll on the delivery arm
- Milling fence with quick positioning
- Edger shoe
- Eccentric clamp
- Handle for sliding carriage
- Swivel arm for Feed device
- On/Off switch Main and scoring saw blade on the sliding carriage
- Height adjustment and tilting of the unit motor-driven
- Motor power 3 x 7 kW
| Scoring unit | with separate scoring motor |
| Sliding carriage | made of anodised aluminium |
| Handle for sliding carriage | ✔ |
| On/off switch on the sliding carriage | ✔ |
| Material roll on the trimming frame | ✔ |
| Trimming shoe | ✔ |
| Eccentric clamp | ✔ |
| Mitre fence | with degree graduation and two professional folding stops |
| Saw parallel stop | ✔ |
| Dressing join fence | ✔ |
| Curved milling protection hood | ✔ |
| Milling stop | with aluminium jaws and quick positioning |
| Height adjustment and tilting of the saw unit | motorized, with digital display |
| Height adjustment and swivelling of the milling unit | motorized, with digital display |
| Swivel arm for feed apparatus | ✔ |
