    Brandimage to Product KSO 200 F

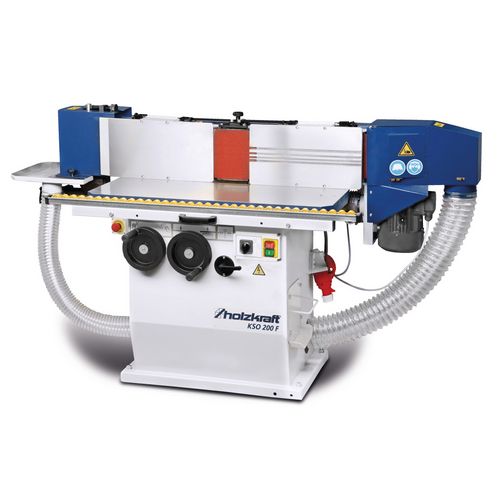

    Edge sanding machine

    KSO 200 F

    With swiveling sanding unit and oscillating sanding belt. F version for veneer sanding

    4.549,00 EUR excl. Tax / pc(s).
    5.413,31 EUR incl. 19% Tax / pc(s).
    Promotional price *
    3.899,00 EUR excl. Tax / pc(s).
    4.639,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5363001

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • sanding unit can be swiveled up to 45 ° via lever
    • The machine stand made of welded steel guarantees high torsional rigidity and vibration-free working.
    • Oscillating sanding belt with separate gear motor for better sanding results
    • Oscillation optionally switchable
    • sanding sole with graphite coating for a longer service life of the sanding belt
    • Height-adjustable sanding table for utilization of the entire sanding belt width
    • Height-adjustable additional table with suction for sanding radii
    • The spring-loaded belt tension independently compensates for belt length differences.
    • With double suction

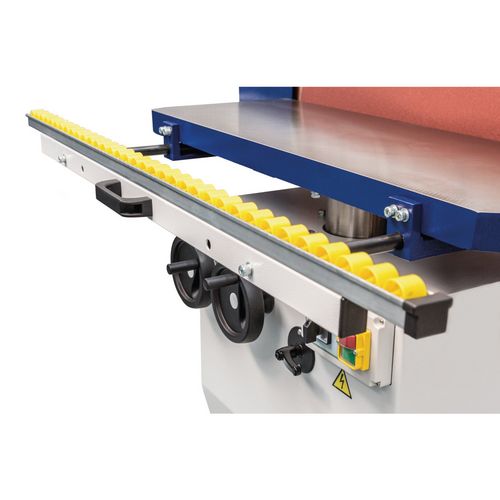

    • Extendable roller table extension
    • With rubberized sanding roller
    • Veneer edge sanding device with contact shoe with fine adjustment, unloading rollers and stop rulers
    • With grooved feed ruler for veneer projections
    • Quick change from veneer edging to solid wood sanding possible



    Dimensions and weights
    Length approx.1900 mm
    Width/depth approx.900 mm
    Height approx.1350 mm
    Weight approx.290 kg
    Drive output
    Oscillation motor0.25 kW
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter140 mm
    Sanding machine
    Sanding belt length3000 mm
    Sanding belt width200 mm
    Circumferential belt speed(s)20 m/s
    Sanding surface length1050 mm
    Sanding surface width200 mm
    Oscillation stroke20 mm
    Work top(s)
    Work table length960 mm
    Work table width350 mm
    Work table height adjustment230 mm
    Longitudinal table height adjustment230 mm
    Min. cross table height720 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • table extension
    • rubber rollers
    • wooden crate
