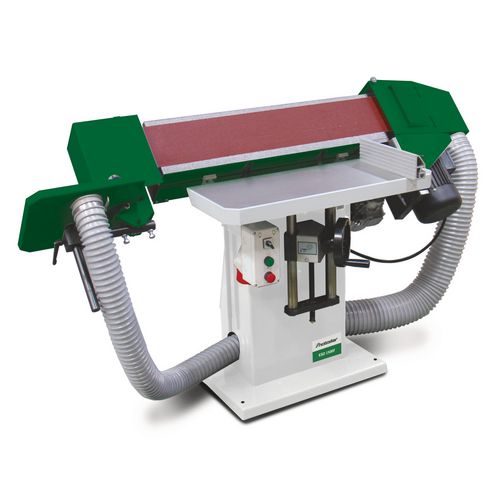

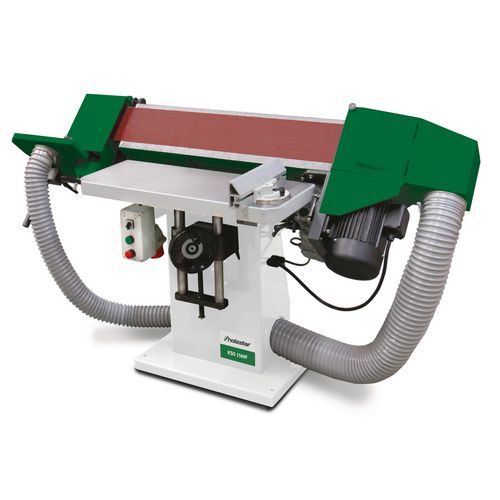

Edge sanding machine
KSO 1500 F
With swiveling sanding unit and oscillating sanding belt for perfect sanding results
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5901500
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Machine stand made of welded steel guarantees high torsional rigidity and vibration-free working
- sanding unit can be swiveled up to 45 ° via lever for sanding straight and bevelled edges
- Oscillating sanding belt with separate gear motor for better sanding results
- Oscillation optionally switchable
- sanding sole with graphite coating for a longer service life of the sanding belt
- Height-adjustable additional table with suction for sanding radii
- Automatic compensation of belt length differences due to spring-loaded belt tension
| Dimensions and weights | |
|---|---|
| Length approx. | 1720 mm |
| Width/depth approx. | 700 mm |
| Height approx. | 1030 mm |
| Weight approx. | 180 kg |
| Drive output | |
|---|---|
| Oscillation motor | 0.25 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 120/80 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 2600 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 20 m/s |
| Sanding surface length | 850 mm |
| Sanding surface width | 200 mm |
| Work top(s) | |
|---|---|
| Work table height adjustment | 180 mm |
| Longitudinal table length | 750 mm |
| Longitudinal table width | 300 mm |
| Longitudinal table height adjustment | 180 mm |
| Min. cross table height | 740 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Miter
- Sanding belt, grit K100
