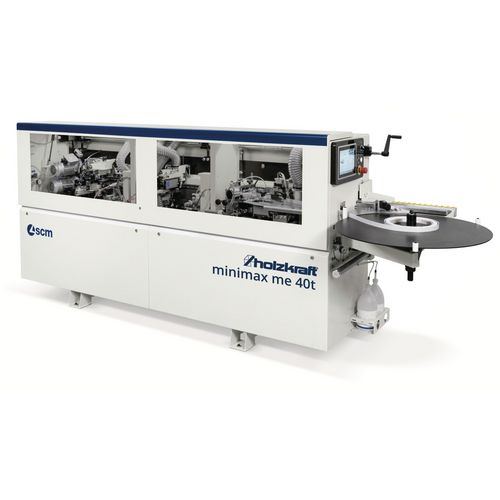

    Edge bander

    minimax me 40 tr s a

    For plastic edges from 0.4 - 3 mm, solid wood edges up to 5 mm and workpieces from 8 - 50 mm

    50.100,00 EUR excl. Tax / pc(s).
    59.619,00 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5507242

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Top equipment for high productivity with a small footprint!
    • Intuitive operation with the eye-S control system and 10" touchscreen
      • :
      • HMI Maestro Active Edge
      • Graphic display of all processing units and their operating status
      • Graphic simulation of machining operations
      • Control of all processing units
      • Regulation of the temperature of the glue tray
      • Assistance functions for setting up the machine according to the processing program
      • Fault diagnosis for quick rectification of simple faults
      • Statistics on processing parameters
      • USB connection
      • Preparation for network connection
      • Excellent accessibility to the working units thanks to the large hood, which ensures protection and noise reduction
      • Automatic unit positioning when changing the panel thickness

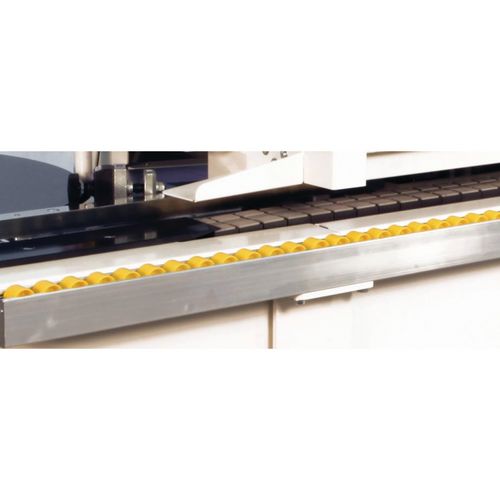

      • Panel feed via feed chain with rubber glide shoes
      • Made in Italy quality

      Equipment details

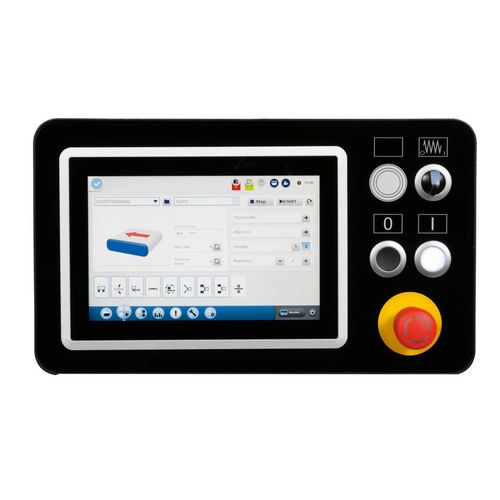

      10" touchscreen control panel
      • Optimum machine management thanks to the new 10" touchscreen control panel with Maestro active edge on which all machine functions are graphically displayed

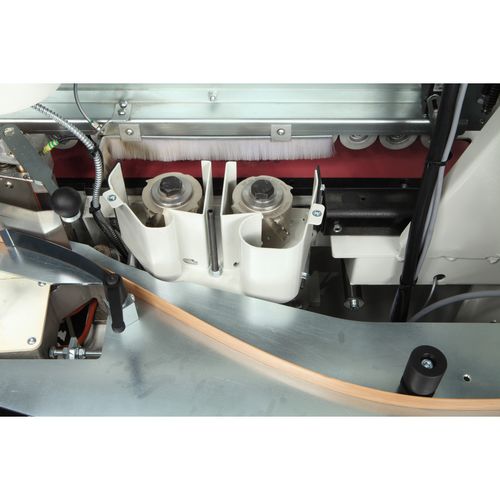

      Pre-milling unit
      • Two slide cutters

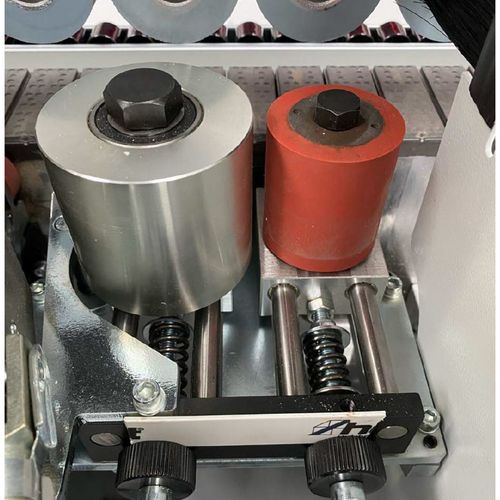

      Glue station
      • The glue is heated quickly and evenly by heating rods located both in the glue tray and in the glue application roller
      • Automatic temperature reduction when the machine is idle for long periods
      • Teflon-coated glue container for easy glue changes
      • Device for recycling unused glue
      • Automatic application of roll edges with cutting knife for edges up to 3 mm
      • Turntable with Ø 730 mm
      • Self-lubricating glue tray
      • Kit for quick change of the glue container

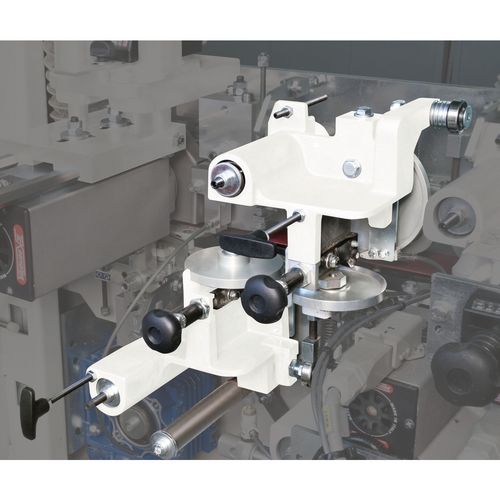

      Flush radius trimming unit
      • With tracing rollers in horizontal and vertical direction for optimum tool positioning
      • Equipped with combination trimming tool Ø 55.3 mm for flush trimming edges up to 5 mm and radius edges up to 2 mm
      • Precise setting via 2 digital displays
      • With chip extraction

      Surface scraper
      • Absolute cleanliness for the perfect finish of the surfaces on the workpiece surface
      • With rotating copying device

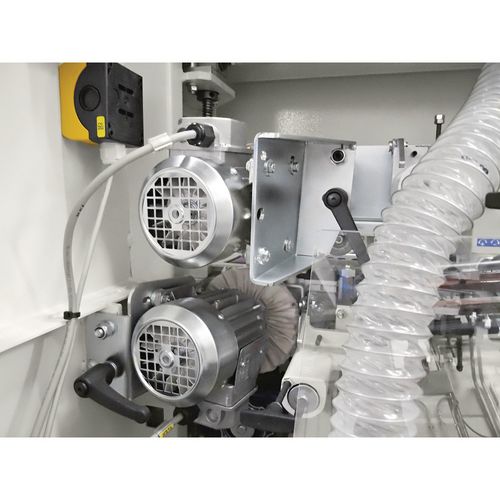

      Buffing unit
      • Driven by two independent swivel and height-adjustable motors
      • For perfect cleaning and polishing of panel edges

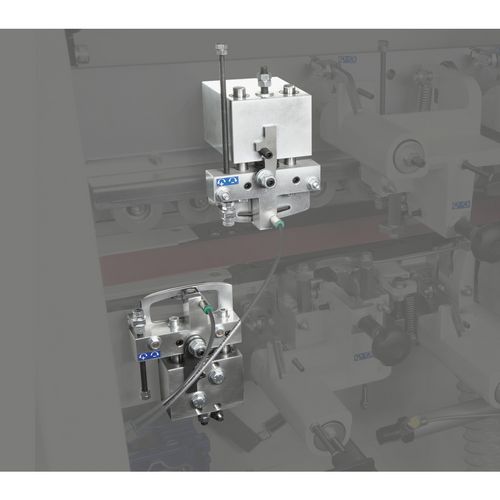

      Radius scraper
      • With numerical position indicator
      • For perfect finishing of plastic edges
      • With device for resetting the unit when it is not needed

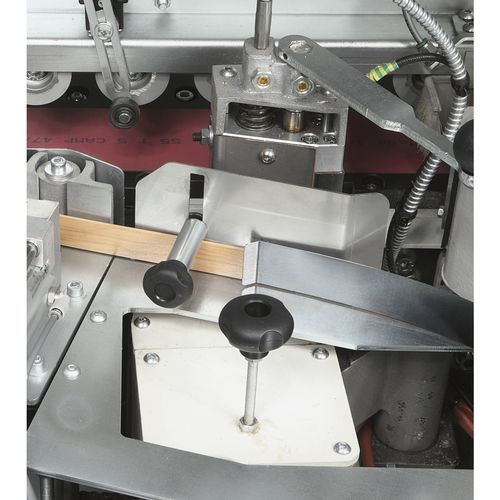

      Edge magazine
      • For the automatic application of strip edges
      • Solid wood strip edgebands are loaded automatically and synchronized with the panel guide

      Optionally available: Grooving unit
      • Enables gluing and grooving of the workpiece in one pass
      • Installation only possible as an alternative to buffing unit 5514560

      Trimming unit (me 40 tr s)
      • For trimming the edge and for radius routing on the top and bottom sides
      • When edgebanding solid wood edges, the radius router is used for trimming
      • High-frequency motor with 12,000 rpm; saw blade Ø 125 mm Z12

      Spraying device for finishing the edge
      • For pre-cleaning the panel surface and edge for more effective cleaning

      Snipping unit (me 40 tr s)
      • For trimming protruding edges

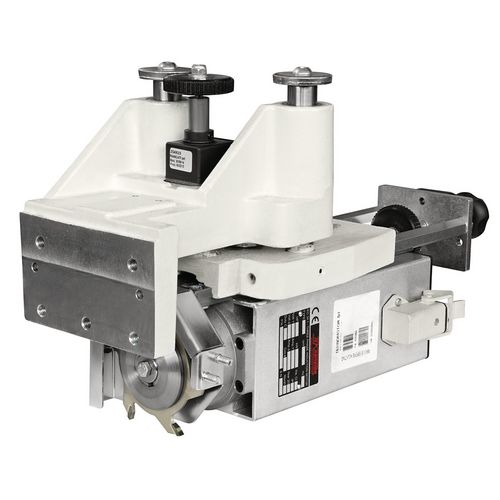

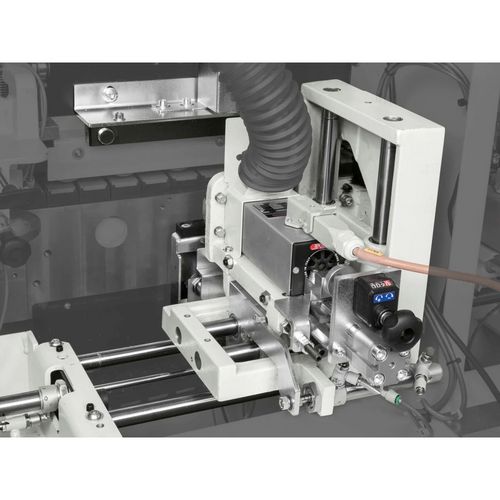

      Rounding unit (me 40 tr s)
      • For rounding the edges
      • High-frequency motor with 12,000 rpm; cutter Ø 58 mm Z4
    Buffing unit
    Current draw2 x 0.14 kW
    Speed2800 min¯¹
    Corner copy unit
    Current draw0.35 kW
    Tool diameter58 mm
    Speed12000 min¯¹
    Dimensions and weights
    Length approx.3774 mm
    Width/depth approx.1546 mm
    Height approx.1337 mm
    Weight approx.842 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Feed
    Current draw0.55 kW
    Speed9 m/min
    Flush radius milling unit
    Current draw2 x 0.35 kW
    Miller diameter HM55.3 mm
    Miller speed12000 min¯¹
    Extraction port diameter2 x 60 mm
    Gluing unit
    Current draw0.25 kW
    Extraction port diameter60 mm
    Filling quantity0.8 kg
    Pre-milling unit
    Extraction port Ø2 x 80 mm
    Current draw3 kW
    Milling speed7200 min¯¹
    Diamond milling diameter80 mm
    Milling height56 mm
    Material removal0 – 2 mm
    Scraper blade units
    Radius scraper2 mm
    Workpiece
    Thickness8 – 50 mm
    Minimum length120 mm
    Min. width110 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Roller edge rotary platen730 mm
    Edge magazine✔
    Anti-adhesive spraying unit✔
    Pre-milling unitwith two slide cutters
    Edge preheating devicewith ceramic infrared lamp
    Glue container quick-change kit✔
    Bonding unit✔
    Jack knife✔
    Corner copy unit✔
    Flush radius milling unit✔, can be switched off electropneumatically
    Radius scraper unitCan be switched off electropneumatically, with numerical position display
    Area scraper unitCan be switched off electropneumatically with rotating copying device
    Buffing unit✔
    Cleaning spray unit✔
