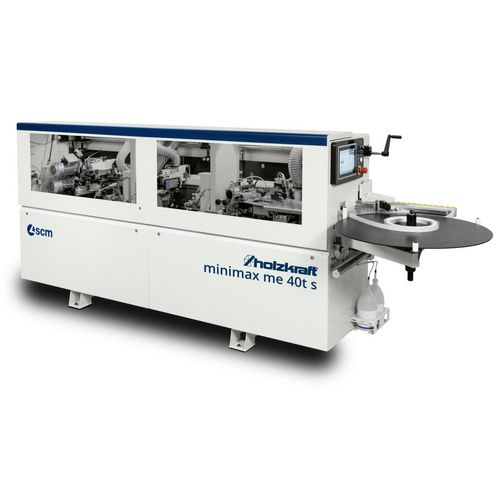

Edge bander

minimax me 40 t s

For plastic edges from 0.4 - 3 mm, solid wood edges up to 5 mm and workpieces from 8 - 50 mm

40.450,00 EUR excl. Tax / pc(s).
48.135,50 EUR incl. 19% Tax / pc(s).

Promotional price *

31.399,00 EUR excl. Tax / pc(s).
37.364,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Art.-No. 5507240

Are you interested in this product?

Put a request

Find Trader

Productdetails

Top equipment for high productivity with low space requirements!

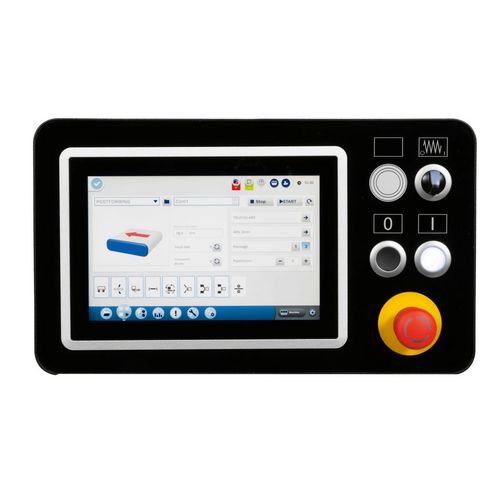

Intuitive operation with the eye-S control and 10" large touchscreen:

HMI Maestro Active Edge
Graphic display of all processing units and their operating status
Graphic simulation of the machining operations
Control of all processing units
Regulation of the glue pool temperature
Assistance functions for setting up the machine according to the machining program
Fault diagnosis for quick correction of simple errors
Statistics on machining parameters
USB port
Preparation for network connection

Excellent accessibility to the working units thanks to the large hood that ensures protection and noise reduction
Automatic aggregate positioning when changing plate thickness
Plate feed by conveyor with rubber sliders
Quality Made in Italy

Optimal machine management due to the new 10" touchscreen control panel with Maestro active edge on which all machine functions are displayed graphically

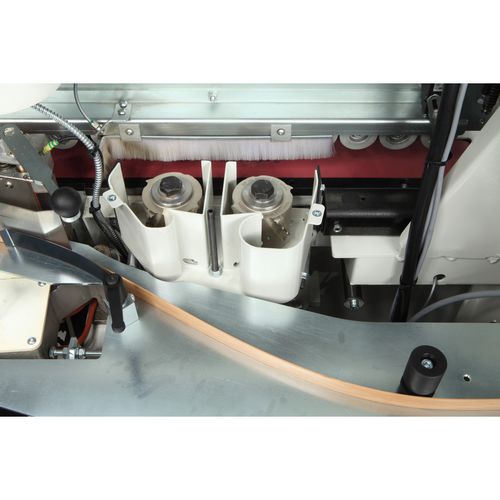

Two slide cutter

The glue is heated quickly and evenly by heating rods located both in the glue pot and in the glue application roller
Automatic temperature reduction when the machine is in idle for longer
Teflon-coated glue container for easy glue replacement
Device for recycling of unused glue
Automatic application of roll edges with cutting knife for edges up to 3 mm
Turntable with Ø 730 mm
Self-lubrication of the glue pot
Kit for quick change of the glue container

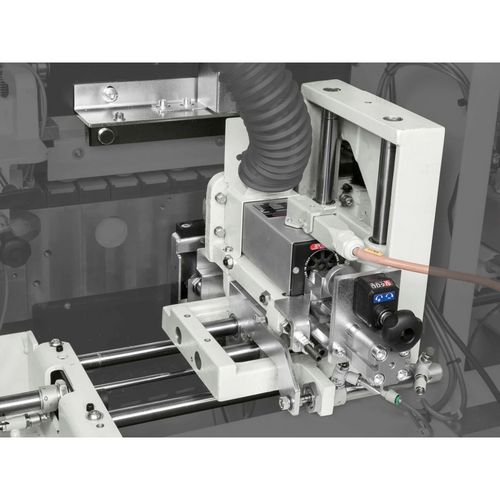

With sensing rollers in horizontal and vertical direction for optimal tool positioning
Equipped with combination milling tool Ø 55.3 mm for flush milling of edges up to 5 mm and radius edges up to 2 mm
Precise setting via 2 digital displays
With chip exhaust

Absolute cleanness for the perfect finish of workpiece surface

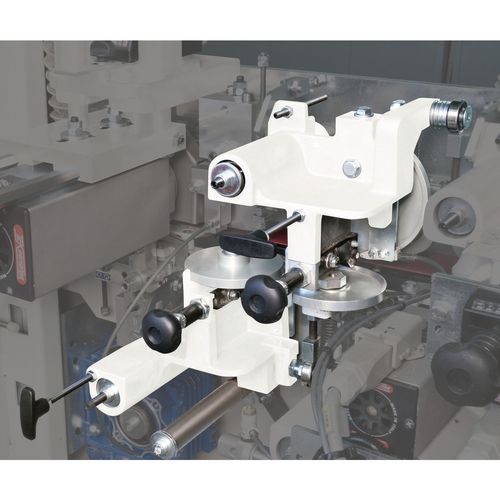

With rotating copy device

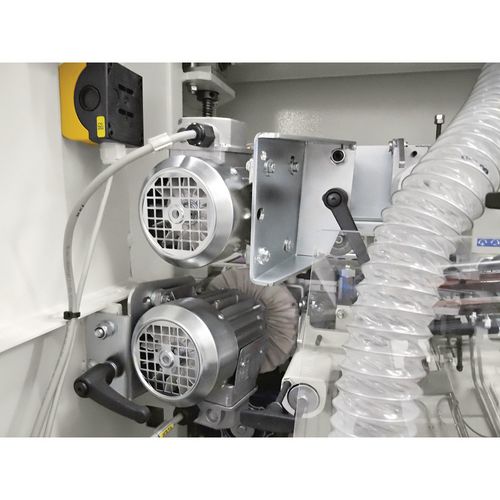

Drive via two independent swivel and height-adjustable motors
For perfect cleaning and polishing of the panel edges

With numerical position display
For the perfect finishing of plastic edges
With device for retracting the unit when it is not needed

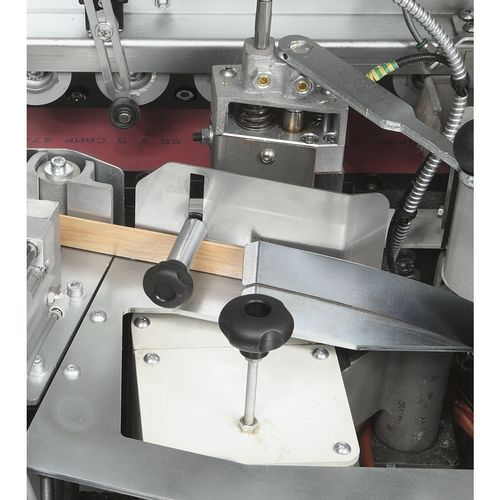

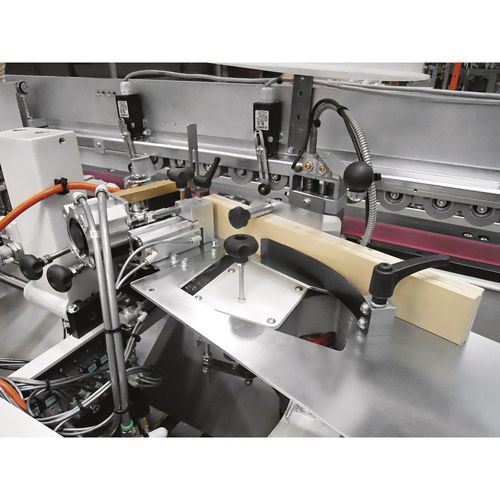

For automatic application of strip edges
Solid wood strip edges are automatically loaded and synchronized with the panel guide

Allows gluing and grooving of the workpiece in one pass
Installation only possible as an alternative to buffing unit 5514560

For capping the edge, as well as for radius milling on the top and bottom side
The radius cutter is used to trim the edges when solid wood edges are glued

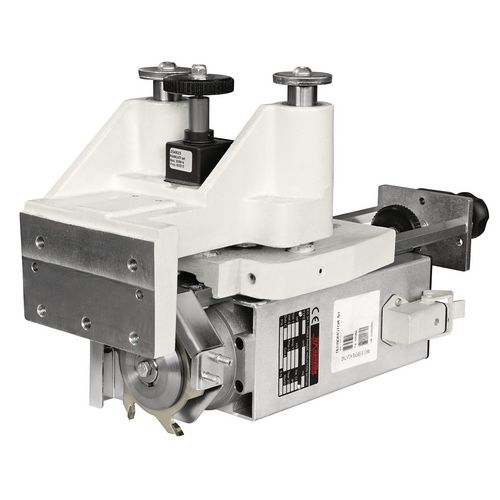

High frequency motor with 12.000 rpm; saw blade Ø 125 mm Z12

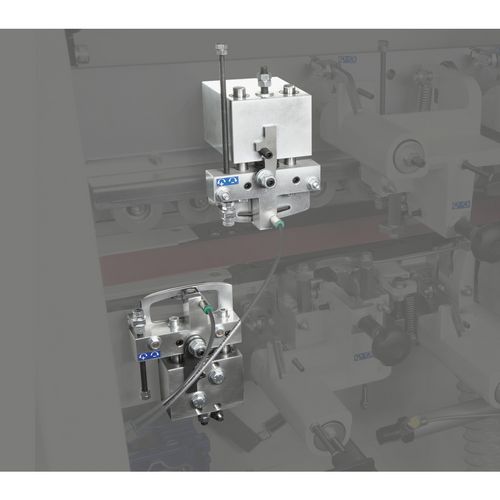

For pre-cleaning of the panel surface and edge for more effective cleaning

For capping protruding edges

For rounding the edges
High frequency motor with 12,000 rpm; cutter Ø 58 mm Z4

Buffing unit
Current draw	2 x 0.14 kW
Speed	2800 min¯¹

Dimensions and weights
Length approx.	3774 mm
Width/depth approx.	1546 mm
Height approx.	1337 mm
Weight approx.	842 kg

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Current draw	0.55 kW
Speed	9 m/min

Flush radius milling unit
Current draw	2 x 0.35 kW
Miller diameter HM	55.3 mm
Miller speed	12000 min¯¹
Extraction port diameter	2 x 60 mm

Gluing unit
Current draw	0.25 kW
Extraction port diameter	60 mm
Filling quantity	0.8 kg

Pre-milling unit
Extraction port Ø	2 x 80 mm
Current draw	3 kW
Milling speed	7200 min¯¹
Diamond milling diameter	80 mm
Milling height	56 mm
Material removal	0 – 2 mm

Scraper blade units
Radius scraper	2 mm

Workpiece
Thickness	8 – 50 mm
Minimum length	120 mm
Min. width	110 mm

VPE

Unit: pc(s).
Packaging unit: 1

Roller edge rotary platen	730 mm
Edge magazine	✔
Anti-adhesive spraying unit	✔
Pre-milling unit	with two slide cutters
Edge preheating device	With heating plate
Glue container quick-change kit	✔
Bonding unit	✔
Jack knife	✔
Combination unit flush trimming / round corners	✔
Flush radius milling unit	✔
Radius scraper unit	With numerical position display
Area scraper unit	With rotating copying device
Buffing unit	✔
Cleaning spray unit	✔
