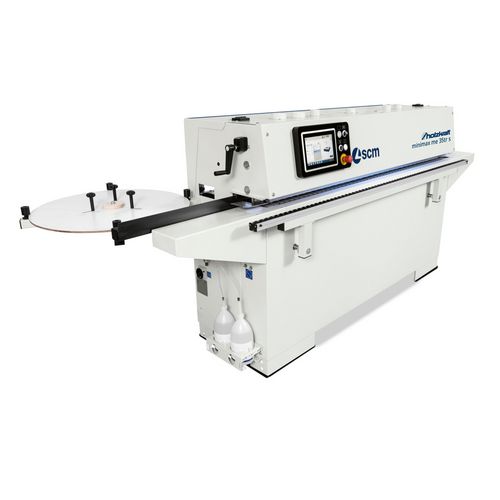

Edge bander

minimax me 35 tr s

For plastic edges from 0.4 - 3 mm and workpieces from 8 - 50 mm

40.650,00 EUR excl. Tax / pc(s).
48.373,50 EUR incl. 19% Tax / pc(s).

Promotional price *

29.399,00 EUR excl. Tax / pc(s).
34.984,81 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 5507236

Are you interested in this product?

Put a request

Find Trader

Productdetails

Top equipment for high productivity with low space requirements!

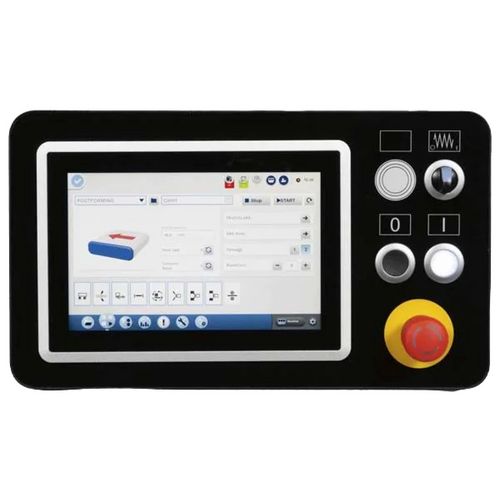

Intuitive operation with the eye-S control and 10" large touch screen: HMI Maestro Active Edge; Graphic display of all machining units and their operating status; Graphic simulation of machining operations; Control of all machining units; Glue tank temperature regulation; Assistance functions for setting up the machine according to the machining program; Fault diagnosis for quick correction of simple errors; Statistics on machining parameters; USB connection; Preparation for network connection; Preparation for Industry 4.0 with data transmission protocol API REST
Excellent accessibility to the working units thanks to the large hood, which ensures protection and noise reduction
Monobloc steel construction ensures high stability and rigidity of the machine
Automatic aggregate positioning when changing the panel thickness

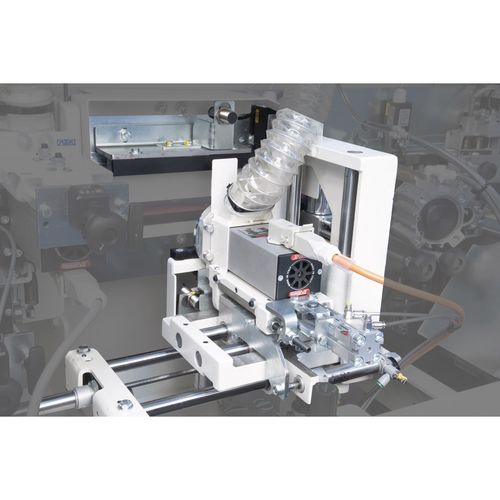

Saw capping unit with corner rounding (me 35 tr s): For edge trimming, as well as corner rounding on the top and bottom side; when edge banding solid wood edges, trimming is done with the help of the radius cutter; high-frequency motor with 12,000 rpm; saw blade Ø125mm Z12
Panel feed is made by feed chain with rubber glides

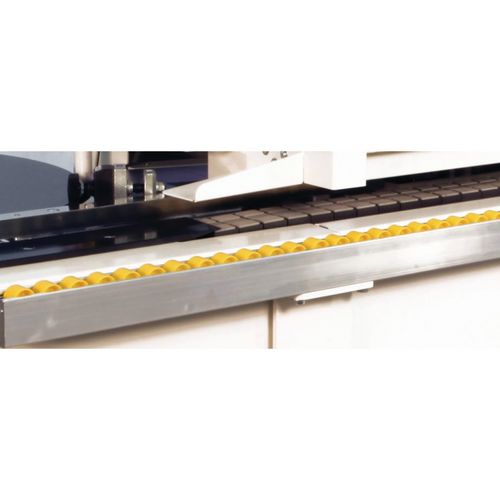

Extractable workpiece support
Adjustment of the infeed guide using spacer plates

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

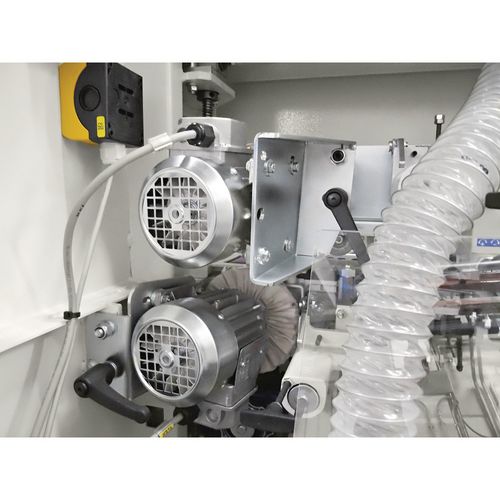

Buffing unit
Current draw	2 x 0.14 kW
Speed	2800 min¯¹

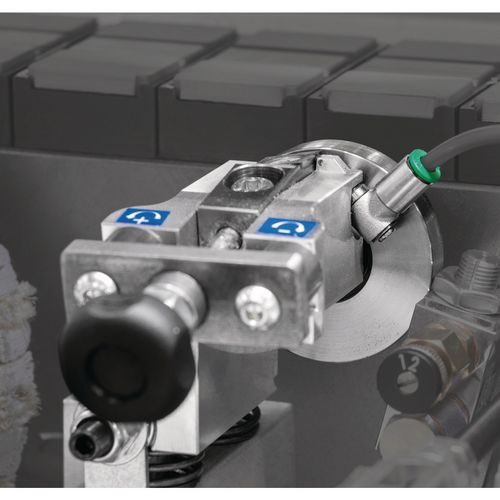

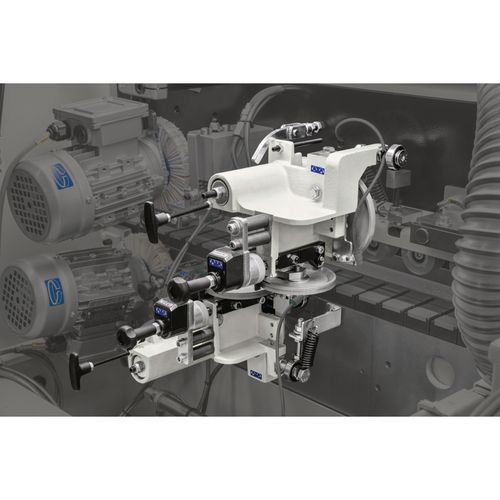

Corner copy unit
Current draw	0.35 kW
Tool diameter	58 mm
Speed	12000 min¯¹

Dimensions and weights
Length approx.	3314 mm
Width/depth approx.	1085 mm
Height approx.	1300 mm
Weight approx.	623 kg

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Current draw	0.55 kW
Speed	7 m/min

Flush radius milling unit
Current draw	2 x 0.35 kW
Miller diameter HM	55.3 mm
Miller speed	12000 min¯¹
Extraction port diameter	2 x 60 mm

Gluing unit
Current draw	0.25 kW
Extraction port diameter	60 mm
Filling quantity	0.8 kg

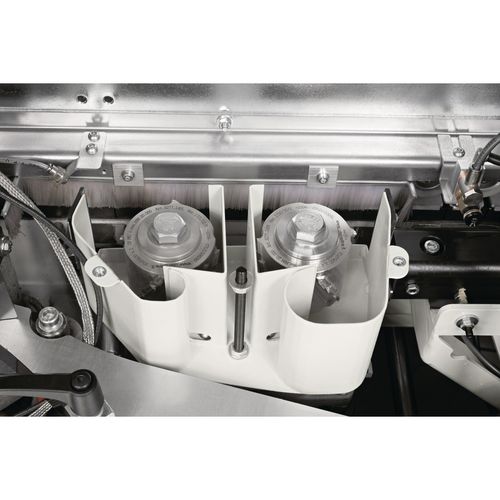

Pre-milling unit
Extraction port Ø	2 x 80 mm
Current draw	3 kW
Milling speed	7200 min¯¹
Diamond milling diameter	80 mm
Milling height	56 mm
Material removal	0.5 / 1 / 1.5 / 2 mm

Scraper blade units
Radius scraper	2 mm

Workpiece
Thickness	8 – 50 mm
Minimum length	120 mm
Min. width	110 mm

VPE

Unit: pc(s).
Packaging unit: 1

Roller edge rotary platen	730 mm

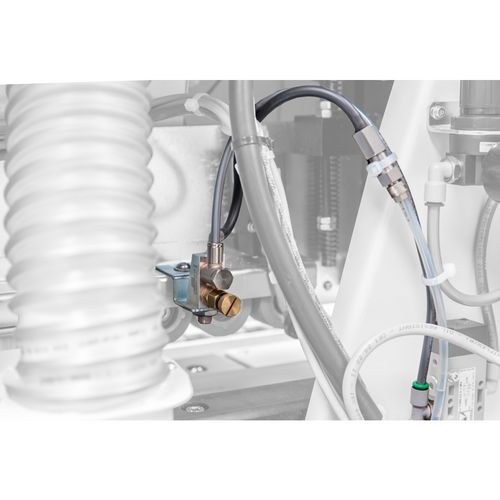

Anti-adhesive spraying unit	✔
Pre-milling unit	with two slide cutters

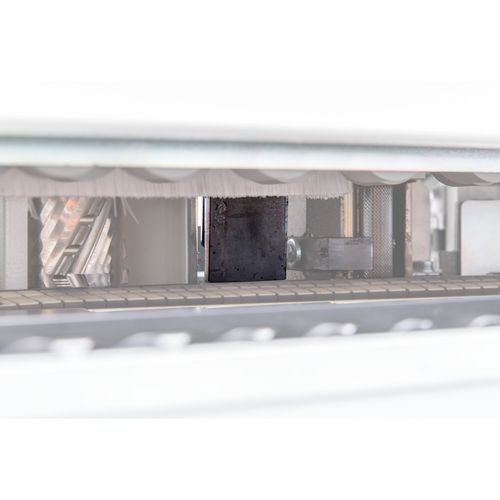

Edge preheating device	with ceramic infrared lamp
Glue container quick-change kit	✔
Bonding unit	✔
Jack knife	✔
Corner copy unit	✔
Flush radius milling unit	✔, can be switched off manually

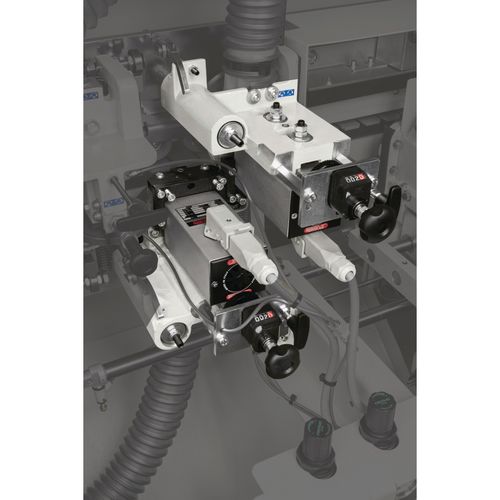

Radius scraper unit	Can be switched off manually, with numerical position display
Area scraper unit	Can be switched off manually, with rotating copying device
Buffing unit	✔
