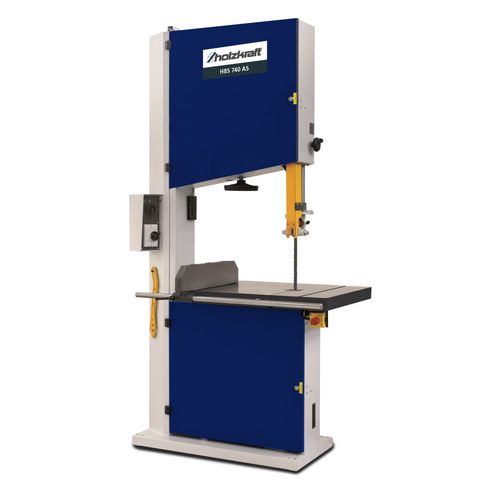

    Woodbandsaw

    HBS 740 AS

    Precision version for the professional with high cutting performance and many equipment options

    7.100,00 EUR excl. Tax / pc(s).
    8.449,00 EUR incl. 19% Tax / pc(s).
    Promotional price *
    6.599,00 EUR excl. Tax / pc(s).
    7.852,81 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5152174

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Heavy design with high dead weight for maximum running smoothness
    • Particularly quiet and pretorsionally stiff machine housing

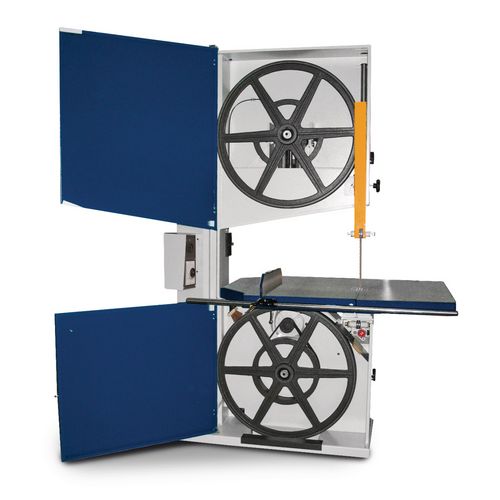

    • Cast flywheels with rubber coating and cleaning brush

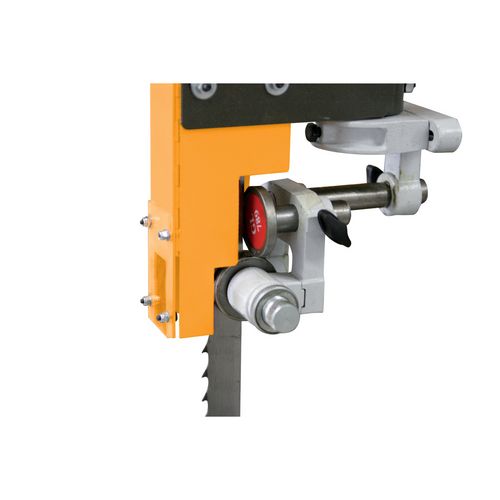

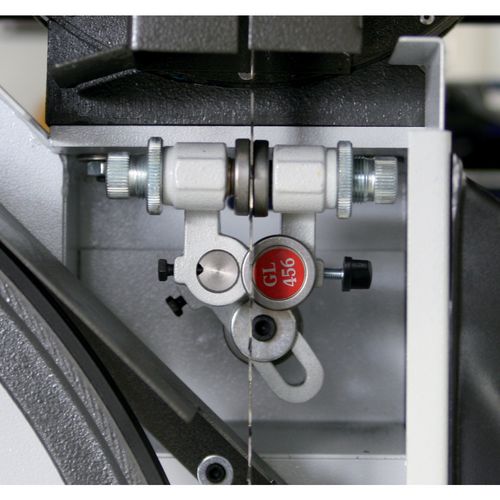

    • 3-roller precision saw band guide as standard at top and bottom
    • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
    • Large cast-iron parallel fence with round rod guide, easilyguide, easily movable

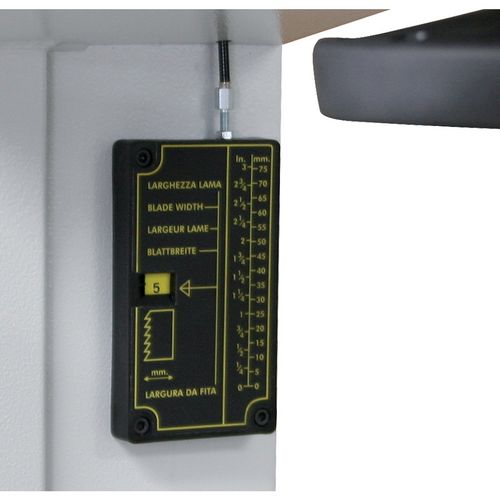

    • Saw blade tension indicator
    • Precise cutting height adjustment overover toothed rack with millimetre scale
    • Self-braking motor

    Available on request

    • Version with cutting height up to 1650 mm
    • Other special versions

    Table, motor and switch must be mounted on site



    • Heavy design with high dead weight for maximum running smoothness
    • Cast iron flywheelswith rubber coating and cleaning brush
    • 3 roller precision saw band guide as standard.ig above and below
    • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
    • Precise cutting height adjustment via toothed rack with millimetre scale



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    Max. cutting height 90°450 mm
    Max. cutting width720 mm
    Dimensions and weights
    Length approx.1180 mm
    Width/depth approx.820 mm
    Height approx.2430 mm
    Weight approx.414 kg
    Electrical Data
    Delivery power3,0 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 120 mm
    Saw band
    Speed(s)1540 m/min
    Length5400 mm
    Strength0.6 - 0.7
    Work top(s)
    Length1000 mm
    Width720 mm
    Height980 mm
    Pivot0 – 20 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1
