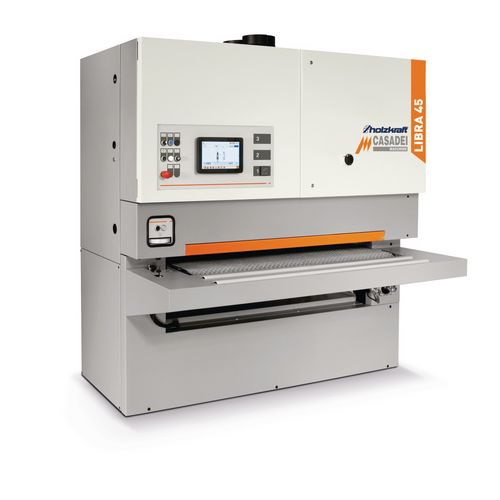

CASADEI LIBRA 45/3 RRR 110

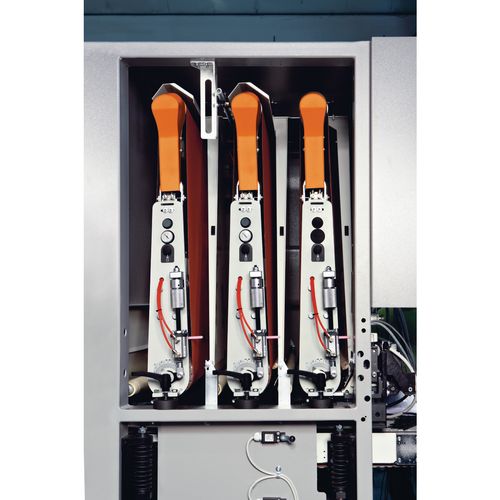

Three-band version

38.050,00 EUR excl. Tax / pc(s).
45.279,50 EUR incl. 19% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5222455

Are you interested in this product?

Put a request

Find Trader

Productdetails

Motorized table height adjustment
Digital display for the working height
Electronically controlled sanding belt oscillation with reduced compressed air requirement
Automatic star-delta start
Natural rubber feed carpet with negative profile
Automatic carpet centering
Support table with rollers in the infeed and outfeed of the feed carpet
Large sanding roller Ø 140 mm
Carpet feed via gear motor with two speeds
Flexible steel pressure rail in front of the first unit
Rubber rollers, in front of and behind each working unit
Pneumatic belt tension per unit with decimal correction possibility of the grain / belt thickness
Optional RTC 110 version with planer shaft aggregate Ø 140 mm instead of the first sanding aggregate (with 312 indexable inserts with four cutting edges each, link element, non-return valve and pneumatic cylinder)

Dimensions and weights
Length approx.	1800 mm
Width/depth approx.	2000 mm
Height approx.	2070 mm

Electrical Data
Height adjustment motor power	0.25 kW
Feed motor output	0.45 kW
Drive motor output	11 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter	2 x 160 mm

Feed unit
Feed speed	4.5 / 9 m/min

Sanding machine
Sanding belt length	2150 mm
Sanding belt width	1115 mm
Max. sanding width	1100 mm

Workpiece
Min. height	4 mm
Max. height	170 mm

VPE

Unit: pc(s).
Packaging unit: 1

Worktable height adjustment with electronic display of the working height
Oscillation of the sanding belts with electronic system
Rubber-coated grooved pressure roller at inlet 1 ° position with backflow safety device (CE)
Star-delta start of the main engines
Grooved calibration steel roller
Selector switch for positioning the sanding pad from the control panel
