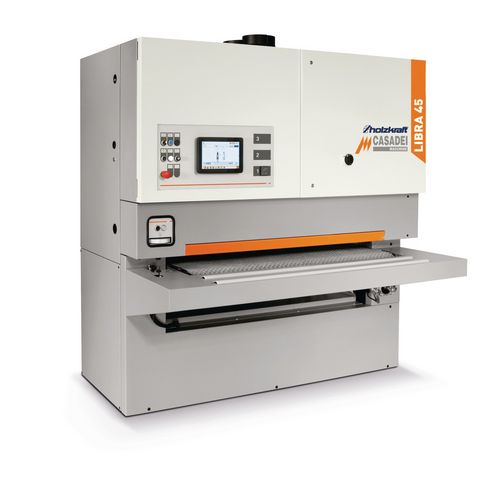

    Wide belt sander

    CASADEI LIBRA 45/2 RTC 110

    Two worm type

    28.250,00 EUR excl. Tax / pc(s).
    33.617,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Art.-No. 5222453

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Motorized table height adjustment
    • Digital display for the working height
    • Electronically controlled sanding belt oscillation with reduced compressed air requirement
    • Automatic star-delta start
    • Natural rubber feed carpet with negative profile
    • Automatic carpet centering
    • Support table with rollers in the infeed and outfeed of the feed carpet
    • Large sanding roller Ø 140 mm
    • Carpet feed via gear motor with two speeds
    • Flexible steel pressure rail in front of the first unit
    • Rubber rollers, in front of and behind each working unit

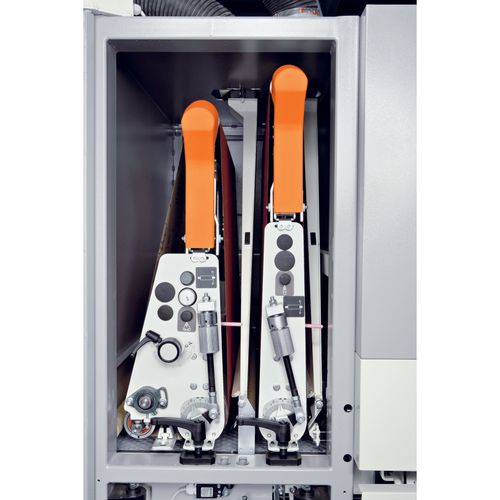

    • Pneumatic belt tension per unit with decimal correction possibility of the grain / belt thickness
    • Optional RTC 110 version with planer shaft aggregate Ø 140 mm instead of the first sanding aggregate (with 312 indexable inserts with four cutting edges each, link element, non-return valve and pneumatic cylinder)



    Dimensions and weights
    Length approx.1550 mm
    Width/depth approx.2280 mm
    Height approx.2070 mm
    Electrical Data
    Height adjustment motor power0.25 kW
    Feed motor output0.45 kW
    Drive motor output11 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter2 x 160 mm
    Feed unit
    Feed speed4.5 / 9 m/min
    Sanding machine
    Sanding belt length2150 mm
    Sanding belt width1115 mm
    Max. sanding width1100 mm
    Workpiece
    Min. height4 mm
    Max. height170 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Worktable height adjustment with electronic display of the working height
    • Oscillation of the sanding belts with electronic system
    • Rubber-coated grooved pressure roller at inlet 1 ° position with backflow safety device (CE)
    • Star-delta start of the main engines
    • Grooved calibration steel roller
    • Selector switch for positioning the sanding pad from the control panel
