    Edge bander

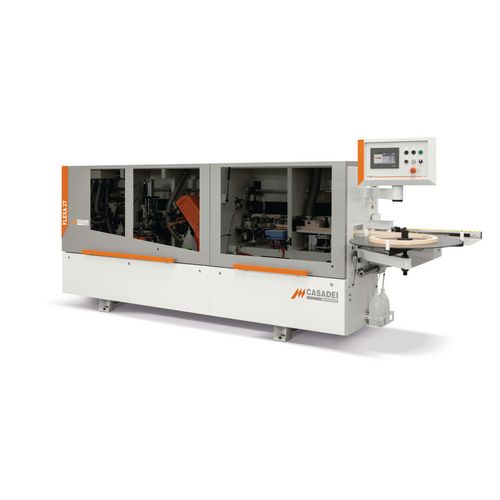

    CASADEI FLEXA 27 RM6

    Professional version for the highest demands. Easy handling for every user thanks to the clear structure of all units.

    32.750,00 EUR excl. Tax / pc(s).
    38.972,50 EUR incl. 19% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5222700

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Sturdy welded ribbed steel construction with pipe stiffeners for maximum torsional rigidity and precise work
    • Proven industrial components

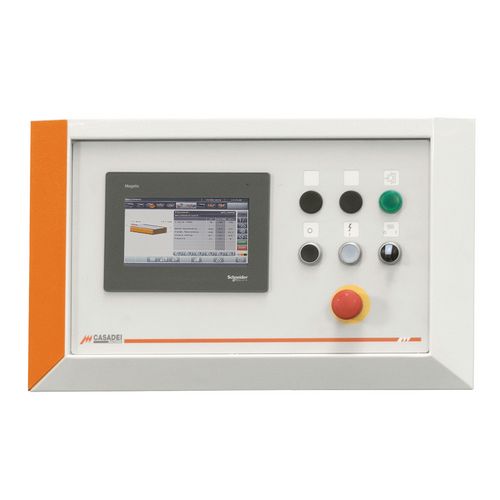

    • Standard with MEGA 120 control with swiveling control panel
    • Automatic adjustment of the upper units when changing the plate thickness

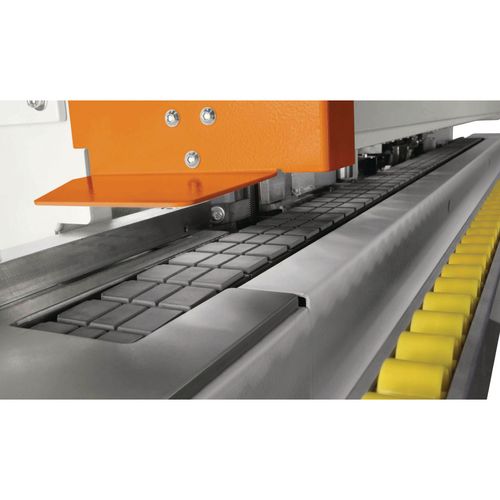

    • Chain plates with non-slip rubber coating
    • Chain double guide system made of hardened and ground steel

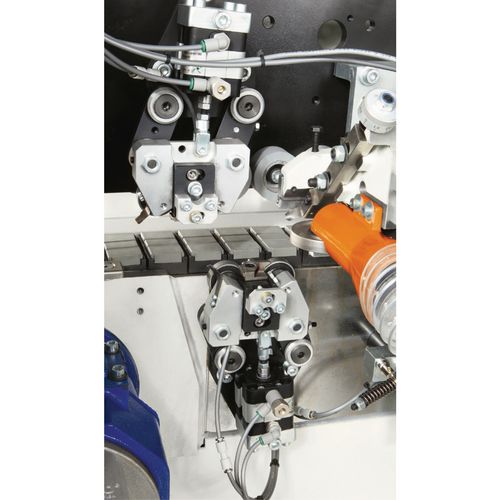

    • Steel upper pressure bar with two rows of mounted pinch rollers
    • Reduced machine setup times thanks to the quick heating system
    • Large extendable roller track over the entire length of the machine

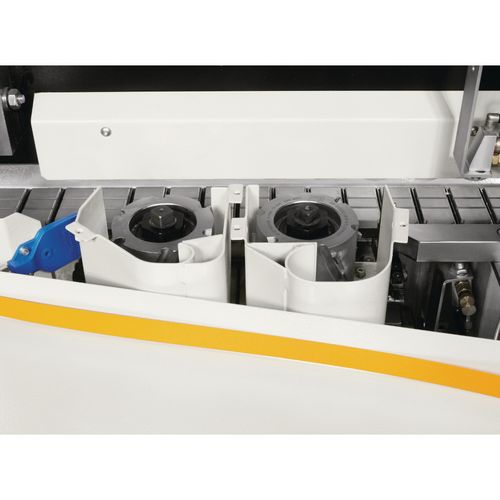

    • Flush cutting unit with two high-frequency motors
    • Quality Made in Italy



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.3737 mm
    Width/depth approx.1543 mm
    Weight approx.1017 kg
    Electrical Data
    Supply voltage400 V
    Mains frequency50 Hz
    Feed
    Speed10 m/min
    Flush radius milling unit
    Current draw0.3 kW
    Miller speed12000 min¯¹
    Gluing unit
    Current draw2.4 kW
    Filling quantity1 kg
    Pre-milling unit
    Current draw1.5 kW
    Milling speed9000 min¯¹
    Diamond milling diameter100 mm
    Milling height64 mm
    Material removal0 – 3 mm
    Scraper blade units
    Radius scraper2 mm
    Trimming unit
    Current draw0.2 kW
    Saw blade speed12000 min¯¹
    Workpiece
    Thickness8 – 50 mm
    Minimum length140 mm
    Min. width90 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Pre-milling unitwith two carbide milling cutters
    Bonding unit✔
    Jack knife✔
    Flush trimming unit✔
    Flush radius milling unit✔
    Radius scraper unit✔
    Area scraper unit✔
