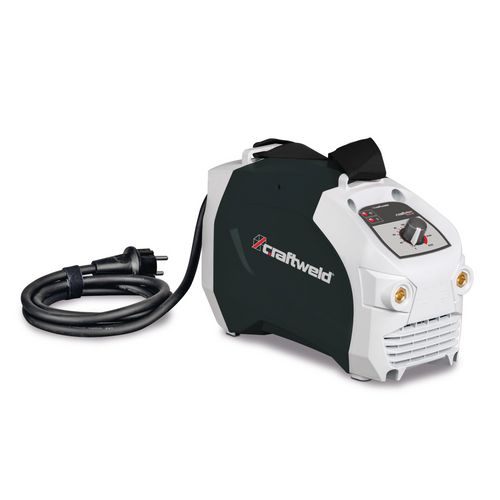

    Electrode inverter

    CRAFT-STICK PLUS 161

    230 volt model in ultra-compact and lightweight design

    Price upon request

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 1363516

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Automatic hot start: By automatically increasing the welding current for a short time, the arc ignites safely and is immediately stable.
    • Arc-Force-Regulation: Due to the internal monitoring of welding current and welding voltage, short-circuits are quickly and safely resolved, thus stabilising the arc and allowing the electrode to be processed without any problems.
    • Anti-stick function: If the electrode accidentally sticks, the welding current is automatically reduced, thus preventing the electrode from annealing.
    • Intelligent ignition management
    • Ultra-modern inverter device
    • Generator capability
    • Fully insulated
    • Ultra-compact and 2.3 kg lightweight design



    • Automatic Hotstart
    • Automatic Arc-Force
    • Integrated anti-stick function
    • Intelligent ignition management
    • Generator capability



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.280 mm
    Width/depth approx.125 mm
    Height approx.140 mm
    Weight approx.2.3 kg
    Duty cycle
    at Imax. 40°C electrode20 %
    Current at 100% DC 40°C electrode100 A
    Electrical Data
    Supply voltage230 V
    Mains frequency50/60 Hz
    Power consumption
    Electrode4.2 kVA
    Setting range
    Electrode5 – 150 A
    TIG DC5 – 150 A
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Without electrode holder and ground cable
