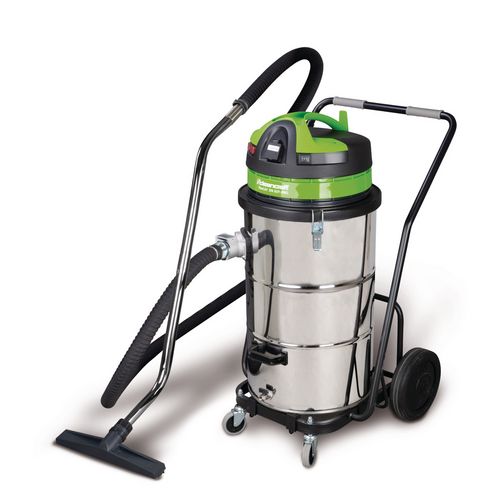

Wet/dry vacuum cleaner
flexCAT 378 EOT-PRO
For the industry with special sieve insert for the extraction of cooling lubricants, liquids containing a lot of oil and coarse metal shavings in large quantities
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 7003380
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Version for vacuuming liquids, chips and other solid particles, eg for extracting cooling lubricants, liquids containing high levels of oil and coarse metal chips

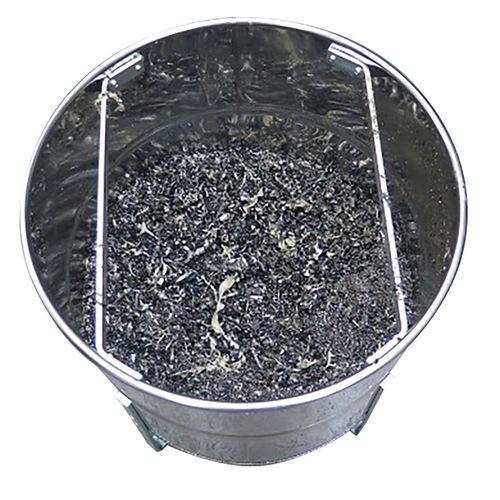

- Removable sieve insert for separate disposal of metal chips
- Ball valve for draining the liquids
- Motors equipped with copper windings and motor protection

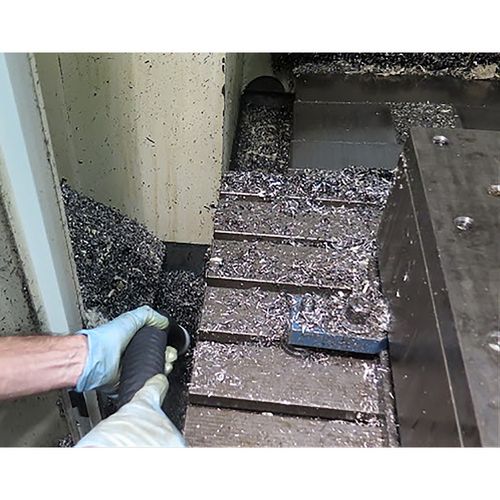

- For particularly demanding machine cleaning in professional metalworking and processing
- Special seal between head and container is resistant to oil and chemical residues without losing flexibility
- Oil-resistant suction hose resists high loads and any kind of torsion
- Stainless steel container is insensitive to sharp-edged metal chips
- Side hose connection for improved suction performance
- Metallic hose connection on the container with lock prevents unwanted loosening of the hose during cleaning
- Ergonomic head design with cable hook
- Float for safe stop with full container of liquid
- Suction motors with noise filter to ensure low-noise operation
- Three motors with separate on and off switches. The operator can choose how many motors to work on. This allows a significant saving of energy
- For particularly demanding machine cleaning in professional metalworking and processing
- Stainless steel container insensitive to sharp-edged metal shavings
- Side hose connection for improved suction performance
- Solid steel chassis with tilting device for easy emptying
- Ball valve for draining the liquids
| Vacuum cleaner type | Wet and dry |
| Airflow | 10750 l/min |
| Tank volume | 78 l |
| Tank material | Stainless steel |
| Hose diameter | 38 mm |
| Sound pressure level | 76 dB(A) |
| Cable length | 8.5 m |
| Motor(s) number | 3 |
| Negative pressure | 245 mbar |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 635 mm |
| Width/depth approx. | 580 mm |
| Height approx. | 1030 mm |
| Weight approx. | 34 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 3.3 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

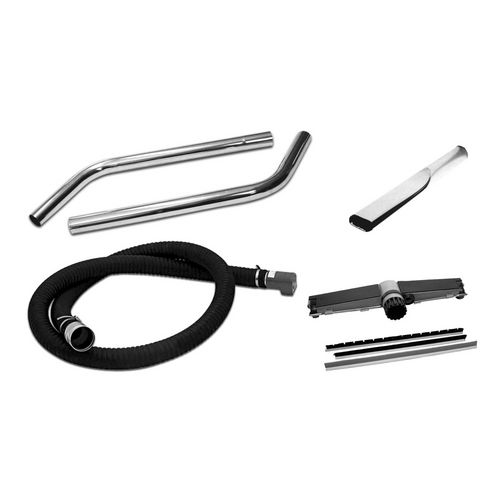

- Chromed steel suction pipes pluggable
- Metal floor nozzle with exchangeable inserts
- Chromed steel flat nozzle
- Oil-resistant special suction hose 4 m

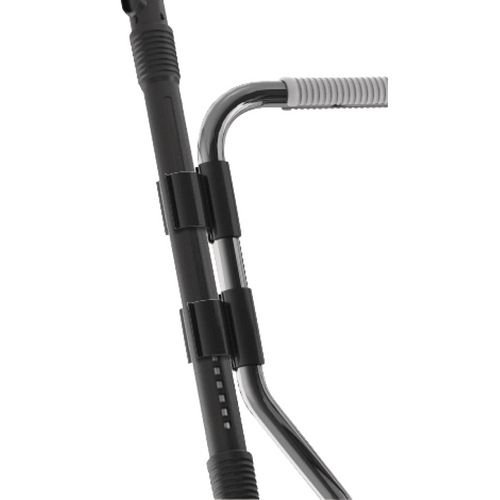

| Cable holder | ✔ |
| Hose and nozzle set | ✔ |
| Motor protection | ✔ |
| Travel device | ✔ |
| Tilting mechanism | ✔ |
