Compressed air tank | |
---|---|
Maximum pressure | 8 bar |
Pressure vessel capacity | 6 l |
Tank vertical / horizontal | Horizontal |

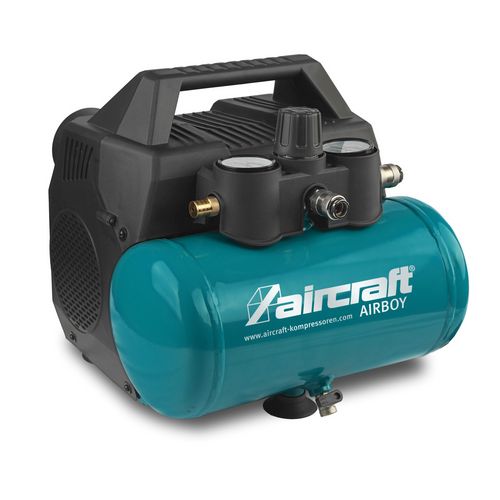

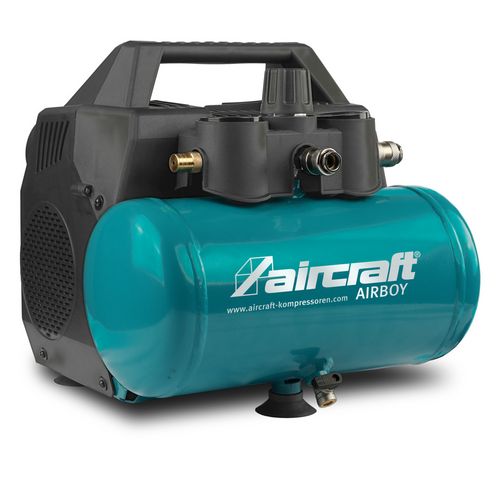

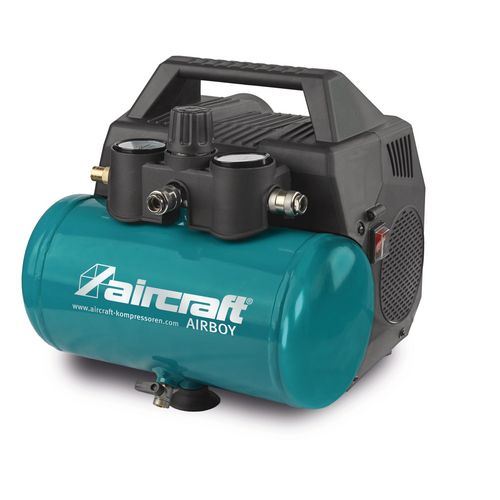

Piston compressor
Portable and oil-free
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 2001225
Compressed air tank | |
---|---|
Maximum pressure | 8 bar |
Pressure vessel capacity | 6 l |
Tank vertical / horizontal | Horizontal |
Compressor | |
---|---|
Compressor system | WDS |
Oil-free / oil-lubricated | Oil free |
Suction capacity approx. | 107 l/min |
Filling capacity approx. | 42 l/min |
Explanation filling capacity | at 6 bar working pressure |
Number of cylinders | 2 |
Number of compressor stages | 1 |
Piston stroke | 5.8 mm |
Diameter of piston | 63.7 mm |
Dimensions and weights | |
---|---|
Length approx. | 345 mm |
Width/depth approx. | 340 mm |
Height approx. | 315 mm |
Weight approx. | 15.9 kg |
Electrical Data | |
---|---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Noise emission | |
---|---|
Sound power level Lw | 71 dB(A) |
Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
Sound pressure level Lp | 49 dB(A) |
Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
VPE | 1 |

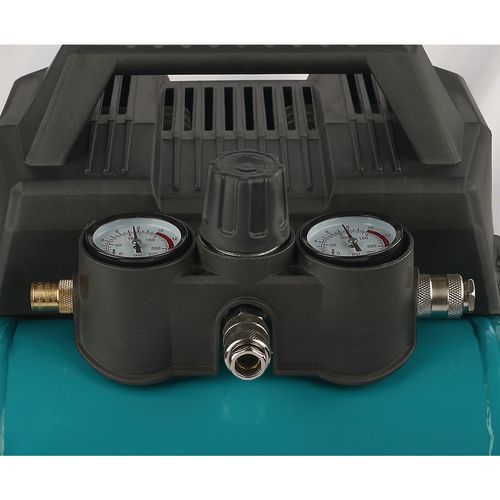

Pressure regulation | Pressure regulator |
Automatic pressure switch | ✔ |
Drive transmission | Direct-coupled |
Compressed air outlet | Two one-hand quick couplings |
Condensate drain | Ball valve |
Pressure vessel | Powder coated |
Compressor base | Three suction cups |
Connection cable | 1.8 m |
Connector | CEE 7/4 |
