| Air outlet | 1 " |
Screw compressor with ribbed belt drive (floor installation with frequency control)
A-PLUS VS 18,5 - 22 kW
for 100% capacity utilization - designed for maximum operational reliability.
From 16.590,00
EUR excl. Tax / pc(s).
From 19.742,10
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Price | ||||||
|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery quantity of up to approx. (l/min) | Maximum Pressure (bar) | VPE | EUR excl. Tax | EUR incl. 19% Tax | |
| A-PLUS 22-08 VS | 2093502 | 1350 3350 | 8 | 1 | 16.590,00 | 19.742,10 | |
| A-PLUS 22-10 VS | 2093504 | 1220 3050 | 10 | 1 | 16.590,00 | 19.742,10 | |
Select Attributes
General
- Effective delivery quantity of up to approx.
- Maximum Pressure
- VPE
Price
- excl. Tax
- incl. 19% Tax
Productdetails

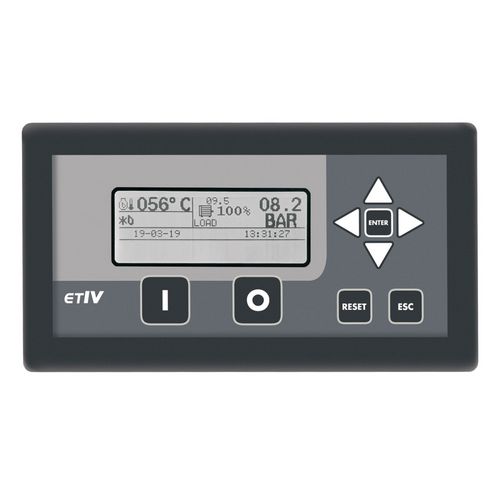

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirements via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
Energy savings through frequency-controlled compressors
Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS range, with outputs of 22, 37, 55 and 75 kW, is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.
A frequency converter dynamically adjusts the voltage, frequency and current values of the motor. The air output is constantly set to 50 to 100 percent of the full load of the compressor. This gives the following measurable positive effects:- Accurate coverage of the air requirement by continuous control of the engine speed and compressed air generation
- Minimization of unnecessary energy losses by continuous adjustment of the compressed air generation to the actual air requirement
- Energy consumption proportional to the supplied compressed air
- Constant and precise pressure control, adjustable to any value between 6 and 10 bar (13 bar on request)
| Dimensions and weights | |
|---|---|
| Length approx. | 1350 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 1130 mm |
| Weight approx. | 390 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 22 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 68 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
