| Compressed air tank | |
|---|---|
| Maximum pressure | 10 bar |
| Pressure vessel capacity | 50 l |
Piston compressor
AIRSTAR 503/50
solid, professionally equipped craftsman compressors with proven belt drive and two-cylinder high-performance unit made of gray cast iron
1.229,00
EUR excl. Tax / pc(s).
1.462,51
EUR incl. 19% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2009530
Are you interested in this product?
Put a request
Find Trader
Productdetails
- 2-cylinder high-performance cast iron units for a long service life
- Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
- High quality electric motor with high torque
- Electric motor equipped with motor protection switch
- After cooler with cooling fins ensures a low container inlet temperature and thus less moisture in the compressed air
- Stable belt guard made of metal
- Start-up capacitor and start-up relief valve ensure easy start-up on 230 Volt models
- 400 Volt models with phase inverter as standard for easy manual reversal of the direction of rotation
- Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve
- With all safety devices
- Fully wired

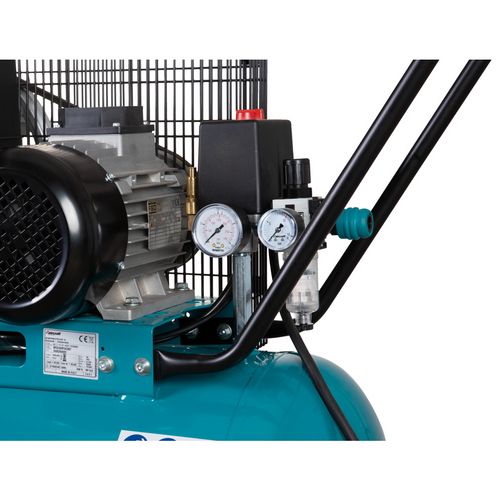

- Filter pressure regulator with a pressure gauge for regulated and compressed air cleaned of condensate, dirt and oil, second pressure gauge for tank pressure
- Ten-year rust-through warranty on powder-coated compressed air tank
- With quality quick couplings and high-quality CONDOR pressure switch
- With flexible armored hose line with heat protection for a long service life, since no vibration breakage is possible
- With ergonomic handle and transport handle on the compressed air tank for easy transport
- With sturdy steering wheel with parking brake in conjunction with large, puncture-proof wheels for a comfortable transport
The equipment of the mobile AIRSTARs
- At the pressure regulator, you can fix the working pressure infinitely and remove compressed air with reduced pressure.
- Two pressure gauges show the tank u. Working pressure
- With filter pressure regulator
- Standard with quality quick couplings and high quality CONDOR pressure switch
- Aftercooler with large cooling fins ensures a low container inlet temperature and thus less moisture in the compressed air.
- This protects the connected compressed air tools.
- Tire puncture proof, because not filled with air but with PU foam
- As a result, no flat tires longer possible, with full comfort
- With sturdy steering gear with parking brake
Only available in Austria!
| Compressor | |
|---|---|
| Compressor system | HOS |
| Suction capacity approx. | 510 l/min |
| Filling capacity approx. | 400 l/min |
| Explanation filling capacity | at 6 bar working pressure |
| Number of cylinders | 2 |
| Number of compressor stages | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 860 mm |
| Width/depth approx. | 440 mm |
| Height approx. | 880 mm |
| Weight approx. | 65 kg |
| Electrical Data | |
|---|---|
| Delivery power | 3 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level Lw | 94 dB(A) |
| Explanation sound power level Lw | Sound power level according to DIN EN ISO 3744 (RL 2000/14/EG) |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Pressure regulation | Quality filter pressure regulator |
| Automatic pressure switch | CONDOR |
| Drive transmission | V-belt |
| Material compressed air line | Flexible armored conduit with heat protection |
| Compressed air treatment | Filter pressure regulator |
| Compressed air outlet | A quality safety quick coupling |
| Condensate drain | Condensate drain valve |
| Pressure vessel | Powder-coated with a ten-year guarantee against rusting through |
| ZÜS tested | Testing before commissioning can also be carried out by a qualified person |
| Compressor base | Two wheels with PU foam tires, two swivel castors with locking brake |
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6
4921 Hohenzell
Österreich / Austria
info@aircraft.at
Gewerbestraße Ost 6
4921 Hohenzell
Österreich / Austria
info@aircraft.at
If a guarantee is shown in the article description and/or in the description of the scope of delivery, your legal rights of liability for defects towards your seller remain unaffected. For the scope, duration, content and the guarantor, please refer to the guarantee conditions. We are not liable for printing errors, mistakes or incorrect presentation. Technical and optical changes are reserved. Fig. partly with optional accessories. Delivery is made exclusively according to our terms of delivery and payment. The sale is carried out via the specialized trade.
